100000199

Miniature Encoder, With Analog Output, Premium Line

Manufacturer's No: RI120P1-QR20-LU4X2-0.24-AMP01-3P     Manufacturer: Turck Banner

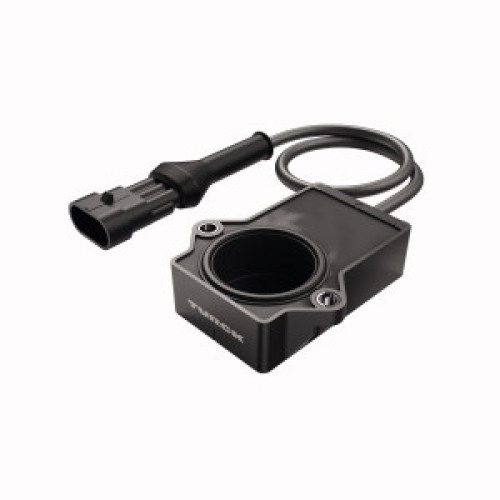

Miniature Encoder, With Analog Output, Premium Line

Availability On Request

£127.58
  • Miniature encoder with analog output
  • Premium line with increased interference immunity
  • Operating voltage: 8-30 VDC
  • Cable length: 0.24 m
  • Rectangular plastic housing, compact and robust
  • Versatile mounting options
  • Positioning element P1-RI-QR20 included
  • Suitable for vehicle board nets (12V and 24V)
  • Protection against conducted interference according to DIN ISO 7637-2 (SAE J 113-11)
  • Extended temperature range

Read more

  • High protection class IP68/IP69K
  • Protection against salt spray and rapid temperature changes
  • Measuring range displayed via LED
  • Immune to electromagnetic interference
  • Resolution: 0.09°
  • 3-wire connection
  • Analog output: 0.5-4.5 V
  • Output: 5 V (typical) without RLC coupling


Product

Manufacturer Material ID -
RI120P1-QR20-LU4X2-0.24-AMP01-3P
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
DE
UNSPSC -
39121402
Turck Banner

Availability On Request

£127.58
