50146330

Application: Detection of polybags on conveyor belt, Detection of irregular objects on conveyor belt; Special version: Light-band;

Manufacturer's No: RK46C.DL3/2N-M12     Manufacturer: Leuze
Application: Detection of polybags on conveyor belt, Detection of irregular objects on conveyor belt; Special version: Light-band; Operating range limit: 0.55 ... 1.5 m; Light source: LED, Red; Minim

Availability On Request

£184.00
  • Application: Detection of polybags and irregular objects on conveyor belt
  • Special version: Light-band
  • Operating range limit: 0.55m to 1.5m
  • Light source: Red LED
  • Minimum object size: 3mm with optimum alignment
  • Supply voltage: 10V to 30V DC
  • Digital switching outputs: 2 pieces
  • Switching output 1: Transistor, NPN, Light switching
  • Switching output 2: Transistor, NPN, Dark switching
  • Switching frequency: 250Hz

Read more

  • Connection: M12 Plastic 4-pin Connector
  • Design: Cubic housing
  • Dimensions: 20.5mm x 76.3mm x 44mm
  • Housing material: Plastic
  • Operational controls: Teach button
  • Ambient temperature during operation: -40°C to 60°C
  • Degree of protection: IP69K, IP67

Accessories



Product

Manufacturer Material ID -
RK46C.DL3/2N-M12
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

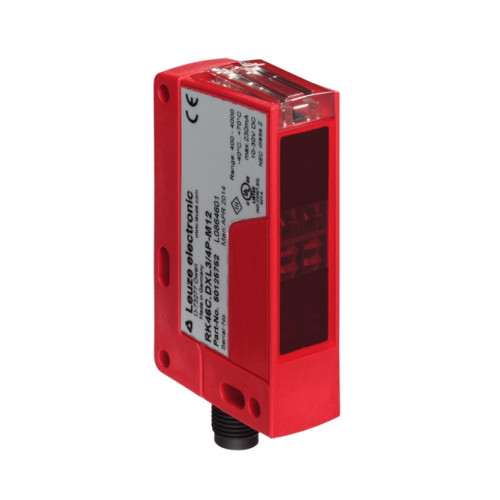

Thumbnail of product picture -
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
Other
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
76.3 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
44 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
1500 Millimetre
Maximum output current -
100 Milliampere
Min. reflector distance -
550 Millimetre
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
1500 Millimetre
Reaction time -
2 Millisecond
Sensing mode -
Light switching
Setting procedure -
Teach-In
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
NPN
Voltage type -
DC
Wavelength of the sensor -
620 Nanometre
Width sensor -
20.5 Millimetre
Leuze

Availability On Request

£184.00
