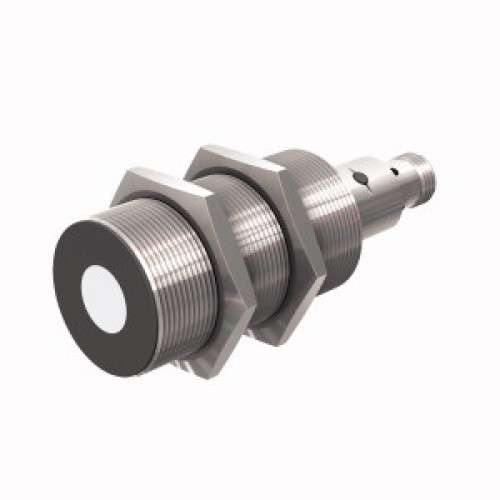

Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU130U-M30E-2UP8X2T-H1151     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

£439.27
  • Type: Ultrasonic Sensor, Diffuse Mode
  • Operating Voltage: 15-30 VDC
  • Max. Range: 1300 mm
  • Smooth sonic transducer face

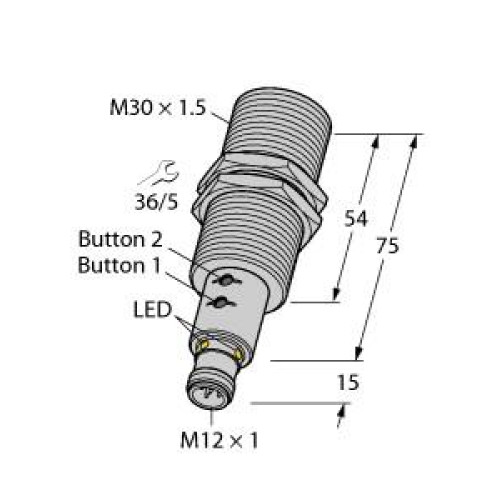

  • Housing: Cylindrical M30, potted
  • Connection: M12 x 1 male
  • Measuring Range Adjustable via Teach Button/Easy-Teach
  • Temperature Compensation
  • Blind Zone: 15 cm
  • Range: 130 cm

Read more

  • Resolution: 1 mm
  • Aperture Angle of Sonic Cone: ±16°
  • Switching Outputs: 2 x PNP, NO/NC programmable


Product

Manufacturer Material ID -
RU130U-M30E-2UP8X2T-H1151
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Other
Length of sensor -
89 Millimetre
Material active area of sensor -
Plastic
Measuring range length -
150 Millimetre
No load current -
50 Milliampere
Relative linearity deflection -
0.5 Percentage
Relative repeat accuracy -
0.15 Percentage
Supply voltage -
15 Volt
Switching frequency -
6.9 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Turck Banner

Availability On Request

£439.27
