Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU300U-M30M-LFX-H1151     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

£428.95
  • Type: Ultrasonic Sensor
  • Mode: Diffuse Mode
  • Operating Voltage: 15-30 VDC
  • Max. Range: 3000 mm
  • Smooth sonic transducer face

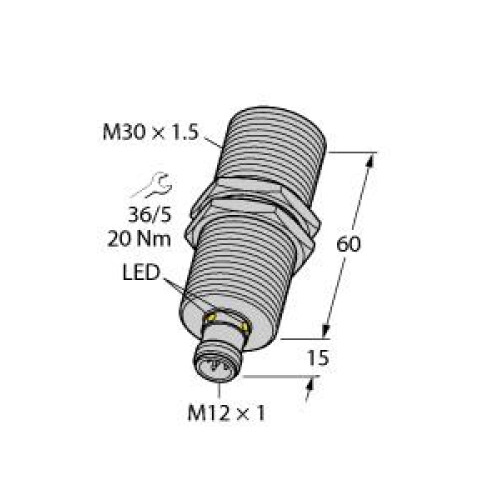

  • Housing: Cylindrical M30, potted
  • Connection: M12 × 1 male
  • Temperature Compensation
  • Blind Zone: 30 cm
  • Range: 300 cm

Read more

  • Resolution: 1 mm
  • Aperture Angle of Sonic Cone: ±15°
  • Frequency Output: 300-2000 Hz (150-1000 Hz)
  • Frequency Range Selectable via FS Control Line


Product

Manufacturer Material ID -
RU300U-M30M-LFX-H1151
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Other
Length of sensor -
75 Millimetre
Material active area of sensor -
Plastic
Measuring range length -
300 Millimetre
Relative linearity deflection -
0.5 Percentage
Relative repeat accuracy -
0.15 Percentage
Setting procedure -
Other
Supply voltage -
15 Volt
Switching frequency -
3.3 Hertz
Type of analogy output -
Other
Type of electric connection -
Plug-in connection
Type of switching output -
Other
Turck Banner

Availability On Request

£428.95
