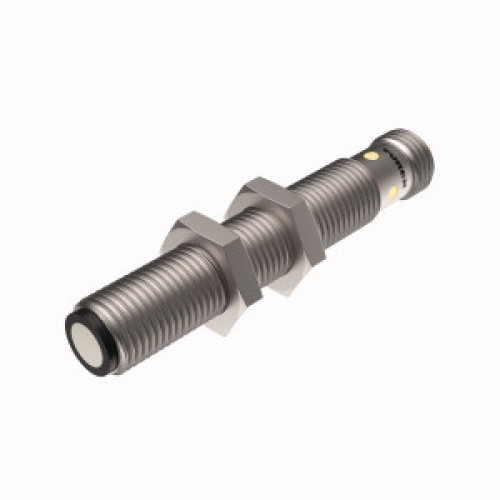

Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU40U-M12-AP6X2-H1141     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

£237.53
  • Type: Ultrasonic Sensor, Diffuse Mode
  • Operating Voltage: 10-30 VDC
  • Max. Range: 400 mm
  • Smooth sonic transducer face
  • Cylindrical housing: M12, potted
  • Connection: M12 x 1 male connector
  • Teach range adjustable via connection cable
  • Blind Zone: 4 cm
  • Range: 40 cm
  • Resolution: 0.5 mm

Read more

  • Aperture Angle of Sonic Cone: ±15°
  • Switching Output: PNP
  • Programmable via IO-Link
  • NO/NC programmable
  • IO-Link interface


Product

Manufacturer Material ID -
RU40U-M12-AP6X2-H1141
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Housing material -
Other
Length of sensor -
72.5 Millimetre
Material active area of sensor -
Plastic
Measuring range length -
40 Millimetre
No load current -
50 Milliampere
Relative linearity deflection -
0.5 Percentage
Relative repeat accuracy -
0.15 Percentage
Standard for interfaces -
Other
Supply voltage -
10 Volt
Switching frequency -
10.4 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
