1610075

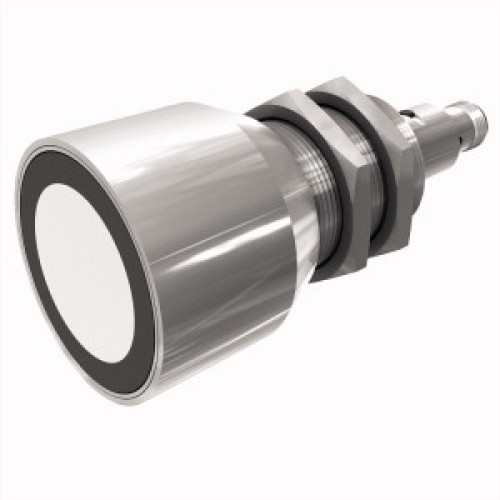

Ultrasonic Sensor, Diffuse Mode Sensor

Manufacturer's No: RU600U-EM30E-LIU2PN8X2T-H1151/3GD     Manufacturer: Turck Banner
Ultrasonic Sensor, Diffuse Mode Sensor

Availability On Request

£788.77
  • Ultrasonic Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 15-30 VDC
  • Max. Range: 6000 mm
  • Smooth sonic transducer face

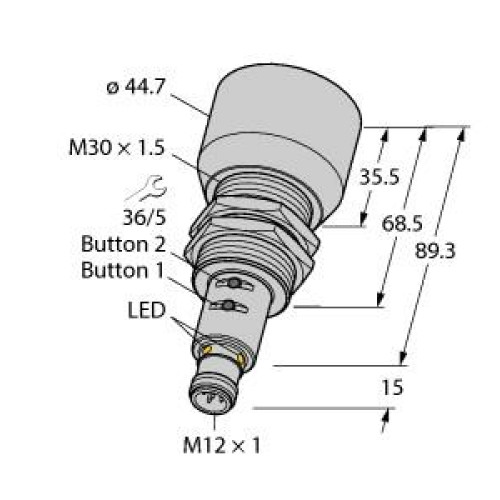

  • Cylindrical housing M30, potted
  • Connection: M12 x 1 male
  • Measuring Range adjustable via teach button/Easy-Teach
  • Temperature compensation
  • Blind Zone: 60 cm

Read more

  • Range: 600 cm
  • Resolution: 1 mm
  • Aperture Angle of Sonic Cone: ±15°
  • 1 switching output, PNP/NPN
  • 1 analog output: 4-20 mA / 0-10 V
  • Additional switching output, PNP/NPN, NO/NC programmable
  • Transmission of process value and parametrization via IO-link
  • ATEX II 3 G approval for gases, vapors, dust
  • Group IIC, Zone 2 for gases and vapors
  • Group IIIC, Zone 22 for dust
  • SC-M12/3GD safety clips included to prevent inadvertent disconnection of energized cable


Product

Manufacturer Material ID -
RU600U-EM30E-LIU2PN8X2T-H1151/3GD
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
41111926
Turck Banner

Availability On Request

£788.77
