3072722

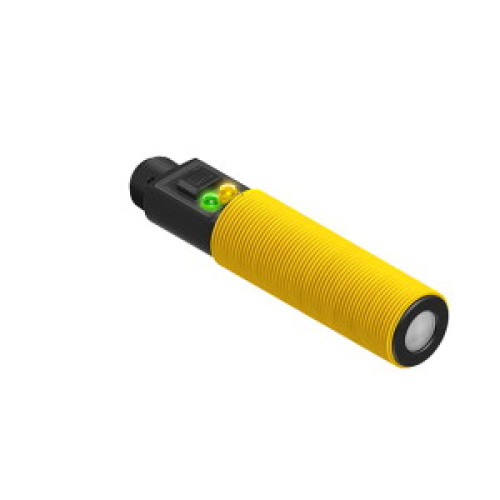

S18UBAQPMA DISCRETE 6 IN 5 PIN M12

Manufacturer's No: S18UBAQPMA     Manufacturer: Turck Banner
S18UBAQPMA DISCRETE 6 IN 5 PIN M12

Availability On Request

£342.07
  • Type: Ultrasonic Sensor
  • Mode: Diffuse mode with switching output
  • Operating Voltage: 10-30 VDC
  • Max. Range: 300 mm
  • Cable Length: 0.15 m
  • Compact design with male M12 x 1 connection
  • Temperature compensation
  • Very small 3 cm blind zone
  • Switching range adjustable via teach-in
  • Adjustable to retroreflective mode

Read more

  • Range: 30 cm


Product

Manufacturer Material ID -
S18UBAQPMA
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39121528

Technical Specification

Ambient temperature -
-20 Degrees celsius
Diameter sensor -
18 Millimetre
Housing material -
Plastic

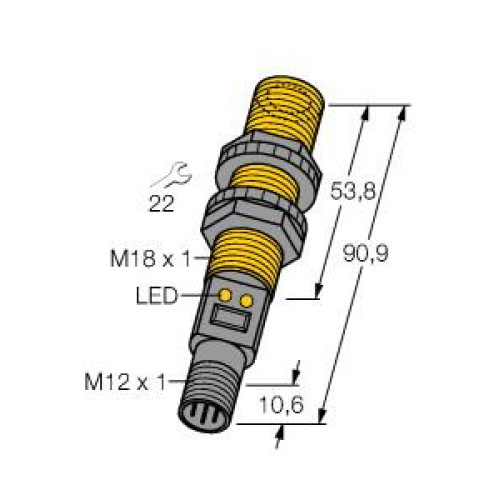

Length of sensor -
90.9 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
30 Millimetre
No load current -
100 Milliampere
Supply voltage -
10 Volt
Switching frequency -
100 Hertz
Type of electric connection -
Cable with connector
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Turck Banner

Availability On Request

£342.07
