2CDS271061R0205

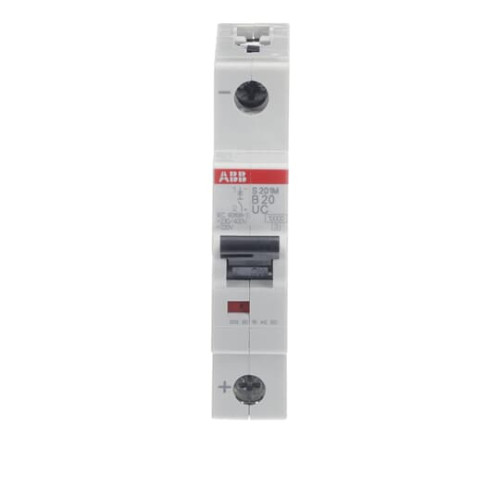

S201M-B20UC Miniature Circuit Breaker - 1P - B - 20 A

Manufacturer's No: S201M-B20UC     Manufacturer: ABB
S201M-B20UC Miniature Circuit Breaker - 1P - B - 20 A

Availability On Request

£73.39
  • S201M-B20UC Miniature Circuit Breaker
  • 1 Pole
  • 20 Amps
  • Suitable for DC and AC applications
  • High short circuit breaking capacity
  • Compliant with major international and local standards
  • Compatible with System pro M compact® accessories
  • Simple and flexible solution for various applications


Product

Manufacturer Material ID -
S201M-B20UC
Net Weight -
1.30kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
- kiloampere
Built-in depth -
69 Millimetre
Release characteristic -
B
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
3
Power loss -
2.33 Watt
Rated current -
20 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
10 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
10 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
10 kiloampere
Rated voltage -
220 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
Other
Width in number of modular spacings -
1
ABB

Availability On Request

£73.39
