3804232

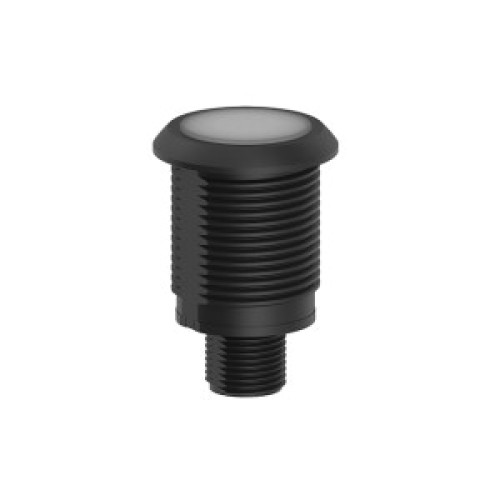

S22 Pro Series: 14-color RGB Indicator, Voltage: 10-30 V dc, Housing: Polycarbonate, IP67 IP69K, Input: Bimodal, Colors: Multicolo

Manufacturer's No: S22L2SRGB14Q     Manufacturer: Turck Banner
S22 Pro Series: 14-color RGB Indicator, Voltage: 10-30 V dc, Housing: Polycarbonate, IP67 IP69K, Input: Bimodal, Colors: Multicolor, 5-pin M12 Integral QD

Availability On Request

£58.98
  • LED Indicator Beacon
  • Operating Voltage: 10-30 VDC
  • All-round LED display with up to 14 colors
  • Individually controllable LEDs

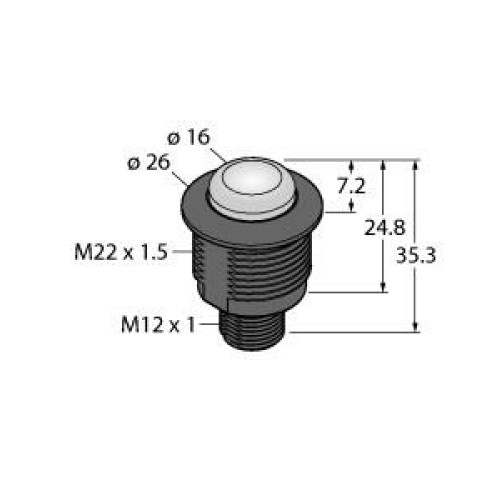

  • Mechanical screw-in thread: M22 x 1.5
  • Protection Class: IP67/IP69K
  • UV-resistant materials
  • Current Consumption per LED color: max. 25 mA
  • Configurable using Pro Editor
  • User-defined colors and various lighting animations

Read more

  • Configurable I/O-block compatibility
  • Connector: Male, M12 x 1


Product

Manufacturer Material ID -
S22L2SRGB14Q
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85318070000
Country of Origin -
US
UNSPSC -
26121629

Technical Specification

Degree of protection (IP rating) -
IP66
Electricity consumption -
25 Ampere
Housing colour -
Black
Light source type -
LED
Turck Banner

Availability On Request

£58.98
