3033377

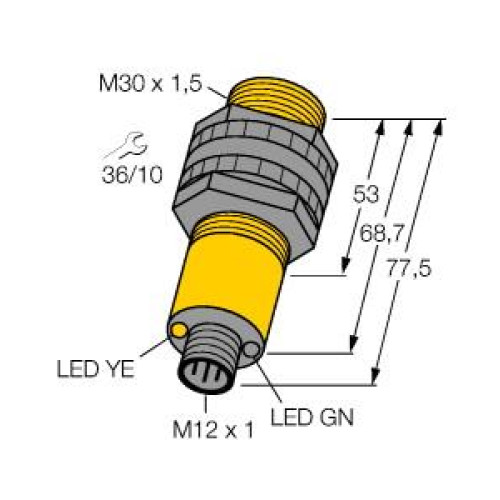

EZ-BEAM S30 Series: Receiver, Range: 60 m, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Manufacturer's No: S30SN6RQ     Manufacturer: Turck Banner
EZ-BEAM S30 Series: Receiver, Range: 60 m, Input: 10-30 V dc, Output: Complementary NPN, 4-pin M12 Integral QD

Availability On Request

£95.27
  • Photoelectric Sensor, Opposed Mode Sensor (Receiver)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 60000 mm
  • Connector: M12 × 1 male, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40°C to +70°C
  • Light/Dark Operation or Light Operation with Alarm Function
  • NPN Switching Output, Changeover


Product

Manufacturer Material ID -
S30SN6RQ
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
30 Millimetre
Housing material -
Plastic
Length of sensor -
77.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Turck Banner

Availability On Request

£95.27
