2CCF019978R0001

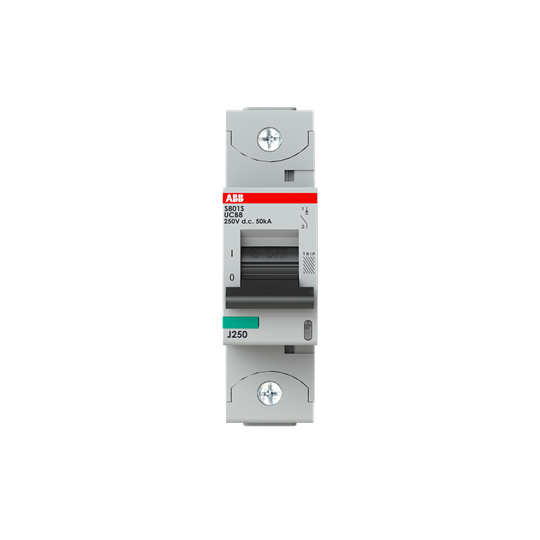

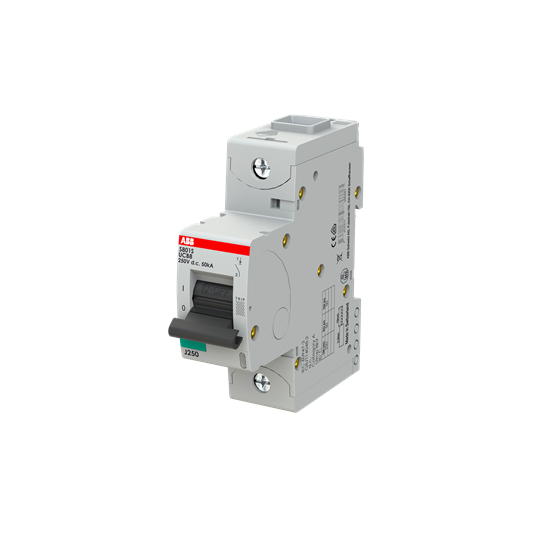

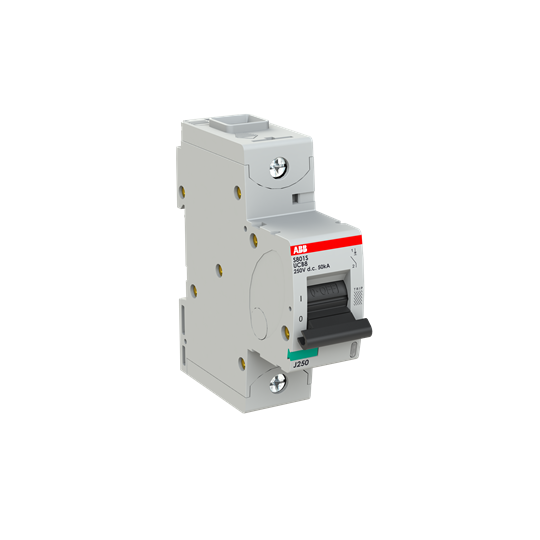

S801S-UCB8 High Performance MCB

Manufacturer's No: S801S-UCB8     Manufacturer: ABB
S801S-UCB8 High Performance MCB

Availability On Request

£109.60
  • Model: S801S-UCB8
  • Type: High Performance MCB
  • Configuration: 1 Pole
  • Characteristic: UC-B
  • Current Rating: 8A
  • Breaking Capacity: 50 kA
  • Voltage Rating: 250 VDC


Product

Manufacturer Material ID -
S801S-UCB8
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Flush-mounted installation -
Frequency -
0 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
2
Power loss -
1.7 Watt
Rated current -
8 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
1500 Volt
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
50 kiloampere
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
Other
Voltage type -
Other
Width in number of modular spacings -
1.5
