2CCF020063R0001

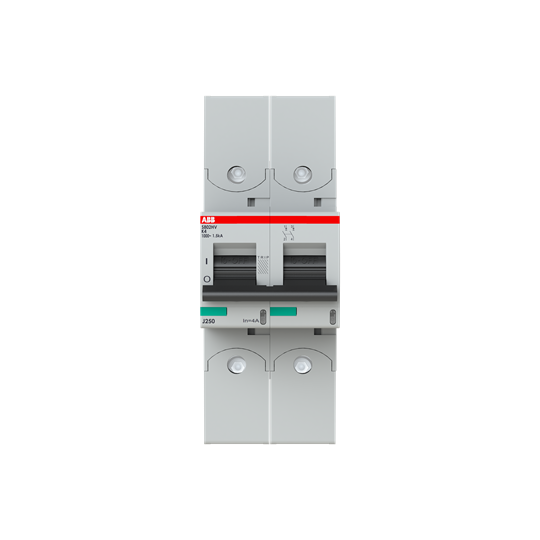

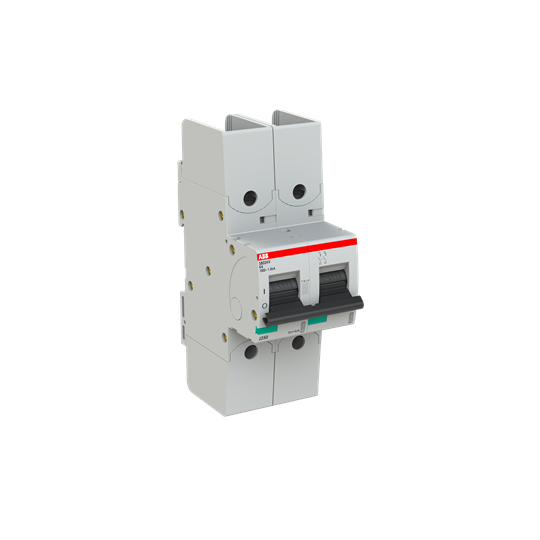

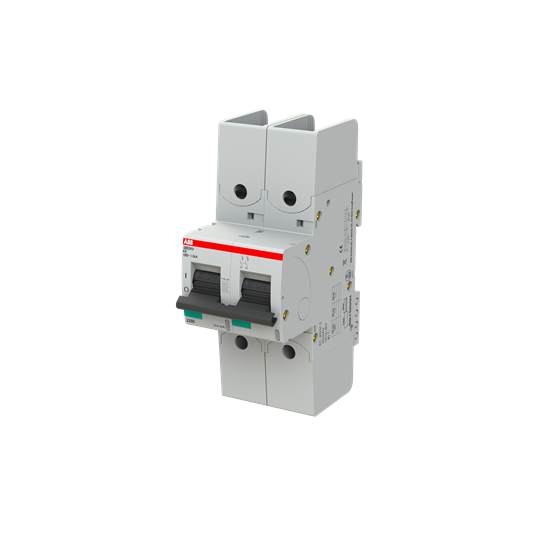

S802HV-K4 High Performance MCB

Manufacturer's No: S802HV-K4     Manufacturer: ABB
S802HV-K4 High Performance MCB

Availability On Request

£711.38
  • Type: MCB (Miniature Circuit Breaker)
  • Model: S802HV-K4
  • Poles: 2
  • Characteristic: K
  • Current Rating: 4A
  • Breaking Capacity: 1.5 kA
  • Voltage: 580/1000 VAC
  • High Performance Circuit Breaker (HPCB)


Product

Manufacturer Material ID -
S802HV-K4
Net Weight -
0.58kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Flush-mounted installation -
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
2
Power loss -
4 Watt
Rated current -
4 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
1000 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
K
Voltage type -
Other
Width in number of modular spacings -
3
ABB

Availability On Request

£711.38
