2CCF019635R0001

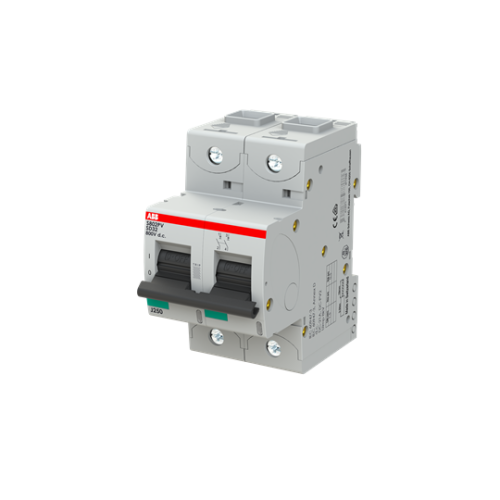

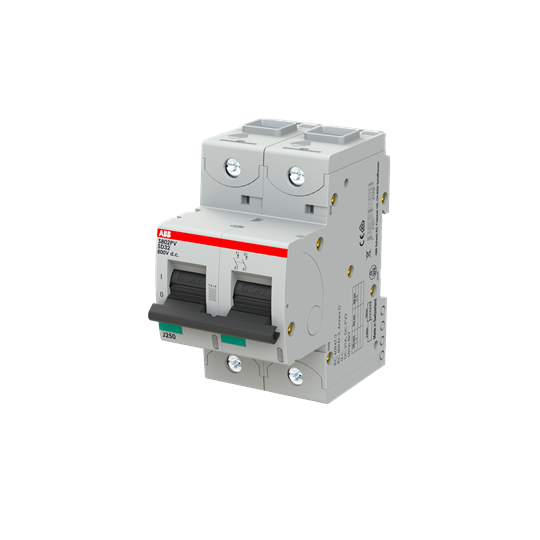

S802PV-SD32 High Performance MCB

Manufacturer's No: S802PV-SD32     Manufacturer: ABB
S802PV-SD32 High Performance MCB

Availability On Request

£184.46
  • Model: S802PV-SD32
  • Type: High Performance MCB
  • Configuration: 2 Pole
  • Current Rating: 32A
  • Breaking Capacity: 1.5kA
  • Voltage Rating: 800VDC
  • Main Function: DC Main Switch


Product

Manufacturer Material ID -
S802PV-SD32
Net Weight -
0.52kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Conditioned rated short-circuit current Iq -
- kiloampere
Number of auxiliary contacts as change-over contact -
-
Rated operation power at AC-23, 400 V -
- Kilowatt
Rated permanent current at AC-21, 400 V -
- Ampere
Switching power at 400 V -
- Kilowatt
Degree of protection (NEMA) -
UN
Rated operating voltage -
800 Volt
Type of electrical connection of main circuit -
Flat plug-in connection
Type of control element -
Toggle
Max. rated operation voltage Ue AC -
0 Volt
Device construction -
Complete device in housing
Colour control element -
Black
Degree of protection (IP), front side -
IP20
Depth -
82.5 Millimetre
Height -
95 Millimetre
Number of poles -
2
Number of switches -
8500
Rated permanent current Iu -
32 Ampere
Rated short-time withstand current lcw -
1.5 kiloampere
Suitable for distribution board installation -
Suitable for front mounting centre -
Suitable for intermediate mounting -
Version as main switch -
Voltage release optional -
Width -
54 Millimetre
Width in number of modular spacings -
3
ABB

Availability On Request

£184.46
