2CCS862002R1447

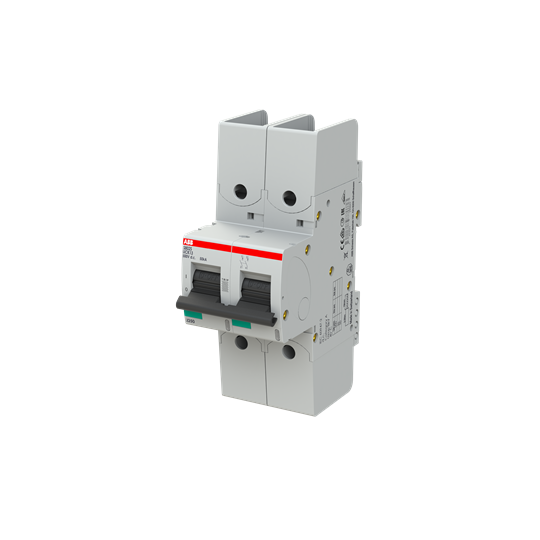

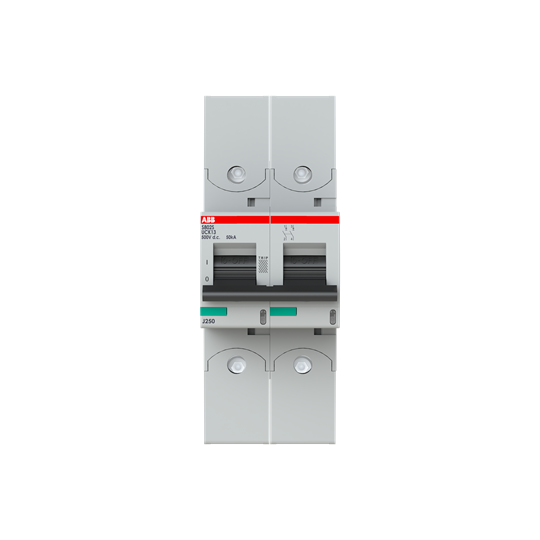

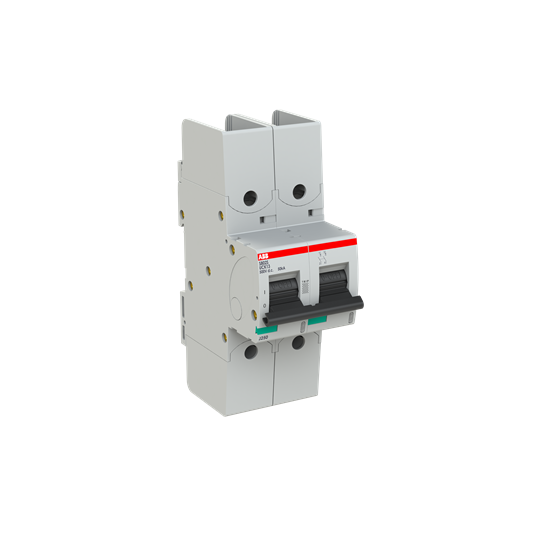

S802S-UCK13-R High Performance MCB

Manufacturer's No: S802S-UCK13-R     Manufacturer: ABB
S802S-UCK13-R High Performance MCB

Availability On Request

£243.86
  • Model: S802S-UCK13-R
  • Type: 1-pole High Performance Circuit Breaker for DC application
  • Characteristic: K-characteristic
  • Rated Current: 13 A
  • Maximum Breaking Capacity: 50 kA at 500V
  • Voltage Range: Up to 500V DC
  • Tripping Mechanisms: Thermal for overload protection, Electromechanic for short circuit protection
  • Compliance: IEC/EN 60947-2 for industrial applications
  • Approvals: Complies with numerous standards for global use
  • Accessories: Extensive range available for added convenience

Read more

  • Fast arc extinction for enhanced application security


Product

Manufacturer Material ID -
S802S-UCK13-R
Net Weight -
0.53kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Built-in depth -
82.5 Millimetre
Rated voltage -
250 Volt
Release characteristic -
K
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
50 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
50 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
50 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
50 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
0 Hertz
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
2
Power loss -
4 Watt
Rated current -
13 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
1500 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
Other
Voltage type -
Other
Width in number of modular spacings -
3
ABB

Availability On Request

£243.86
