2CCF019614R0001

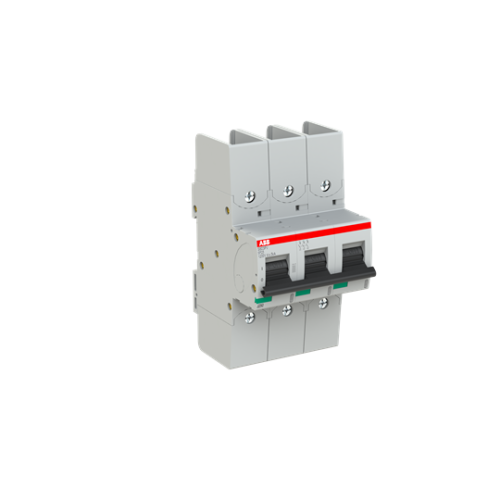

S803PV-SP25 High Performance MCB

Manufacturer's No: S803PV-SP25     Manufacturer: ABB
S803PV-SP25 High Performance MCB

Availability On Request

£316.34
  • S803PV-SP25 is a 3-pole High Performance Circuit breaker for photovoltaics (DC) with a rated current of 25 A
  • Maximum breaking capacity of 5kA at 1200V
  • Suitable for voltages up to 1200V DC
  • Features thermal tripping mechanism for overload protection and electromechanic tripping mechanism for short circuit protection
  • Complies with IEC/EN 60947-2 standards for industrial applications
  • Wide range of accessories available for added convenience
  • Fast arc extinction for enhanced application security


Product

Manufacturer Material ID -
S803PV-SP25
Net Weight -
0.77kg

Additional Product Information

Commodity Code -
85352100
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Built-in depth -
111 Millimetre
Rated voltage -
1500 Volt
Release characteristic -
B
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
5 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
5 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
5 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
5 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
0 Hertz
Number of poles (total) -
3
Number of protected poles -
3
Over voltage category -
3
Pollution degree -
2
Power loss -
12.9 Watt
Rated current -
25 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
1500 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
Other
Voltage type -
Other
Width in number of modular spacings -
4.5
