2CCF019645R0001

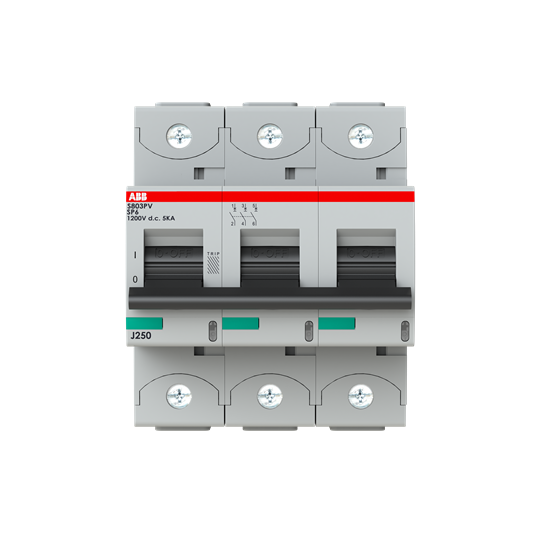

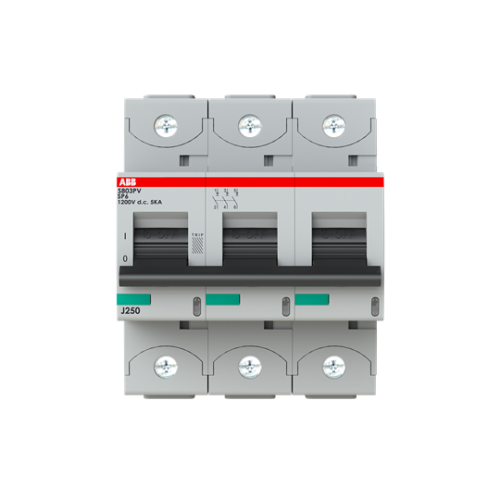

S803PV-SP6 High Performance MCB

Manufacturer's No: S803PV-SP6     Manufacturer: ABB
S803PV-SP6 High Performance MCB

Availability On Request

£316.34
  • S803PV-SP6 High Performance MCB
  • 3-pole circuit breaker for photovoltaics (DC) with B-characteristic
  • Rated current: 6 A
  • Maximum breaking capacity: 5kA at 1200V
  • Voltage: up to 1200V DC
  • Thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Complies with IEC/EN 60947-2 for industrial applications
  • Global approvals for worldwide use
  • Fast arc extinction for enhanced application security


Product

Manufacturer Material ID -
S803PV-SP6
Net Weight -
0.77kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
0 Hertz
Number of poles (total) -
3
Number of protected poles -
3
Over voltage category -
3
Pollution degree -
2
Power loss -
5.4 Watt
Rated current -
6 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
1500 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
Other
Voltage type -
Other
Width in number of modular spacings -
4.5
ABB

Availability On Request

£316.34
