2CCS863002R1427

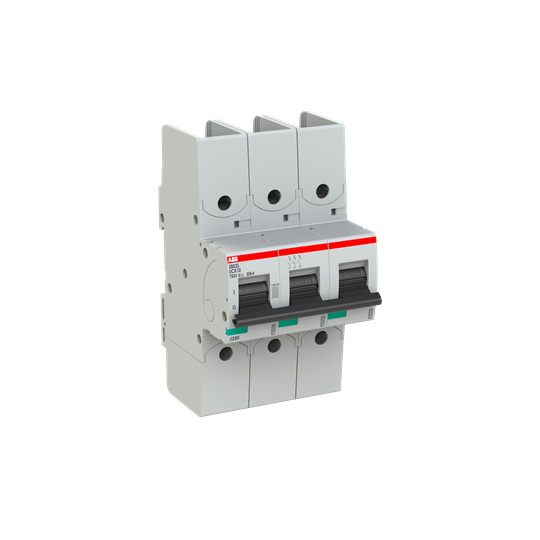

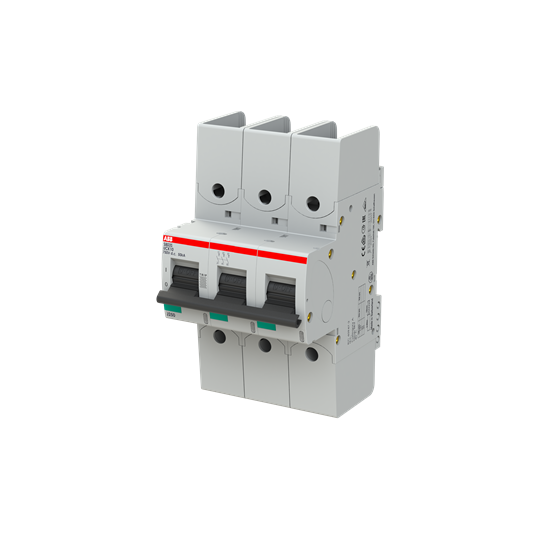

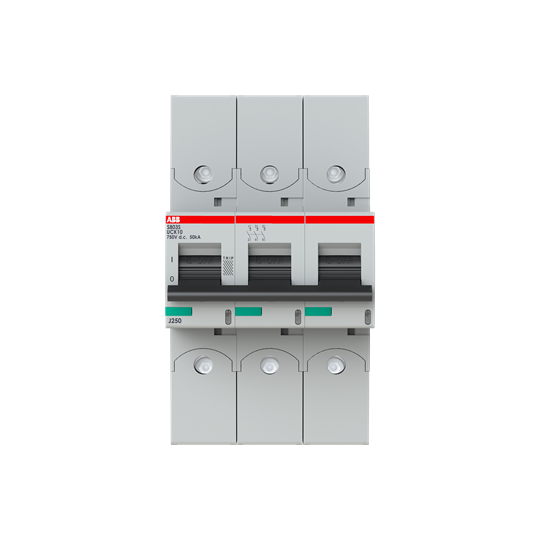

S803S-UCK10-R High Performance MCB

Manufacturer's No: S803S-UCK10-R     Manufacturer: ABB
S803S-UCK10-R High Performance MCB

Availability On Request

£356.70
  • S803S-UCK10-R 1-pole High Performance MCB for DC applications
  • K-characteristic with ring tongue terminal
  • Rated current: 10 A
  • Maximum breaking capacity: 50kA at 750V
  • Voltage range: up to 750V DC
  • Thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Complies with IEC/EN 60947-2 for industrial applications
  • Worldwide approvals for global use
  • Fast arc extinction for enhanced application security

Read more

  • Extensive range of accessories available


Product

Manufacturer Material ID -
S803S-UCK10-R
Net Weight -
0.79kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Built-in depth -
82.5 Millimetre
Rated voltage -
750 Volt
Release characteristic -
K
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
50 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
50 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
50 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
50 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
0 Hertz
Number of poles (total) -
3
Number of protected poles -
3
Over voltage category -
3
Pollution degree -
2
Power loss -
4.5 Watt
Rated current -
10 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
1500 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
Other
Voltage type -
Other
Width in number of modular spacings -
4.5
ABB

Availability On Request

£356.70
