2CCF020028R0001

S803S-UCK8 High Performance MCB

Manufacturer's No: S803S-UCK8     Manufacturer: ABB

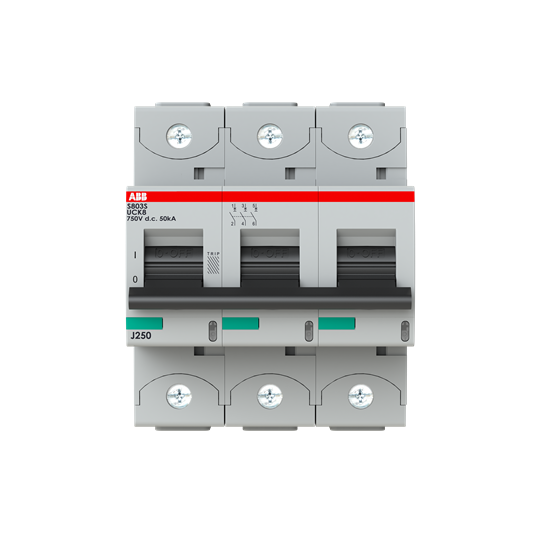

S803S-UCK8 High Performance MCB

Availability On Request

£398.11
  • Model: S803S-UCK8
  • Type: High Performance MCB
  • Poles: 3
  • Characteristic: UC-K
  • Current Rating: 8A
  • Breaking Capacity: 50 kA
  • Voltage: 750 VDC
  • Type: High Performance Circuit Breaker (HPCB)


Product

Manufacturer Material ID -
S803S-UCK8
Net Weight -
0.78kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Flush-mounted installation -
Frequency -
0 Hertz
Number of poles (total) -
3
Number of protected poles -
3
Over voltage category -
3
Pollution degree -
2
Power loss -
5.1 Watt
Rated current -
8 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
1500 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
Other
Voltage type -
Other
Width in number of modular spacings -
4.5
