2CCF019628R0001

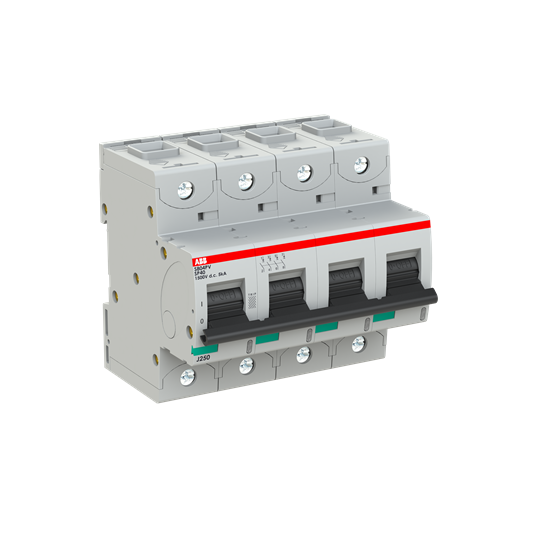

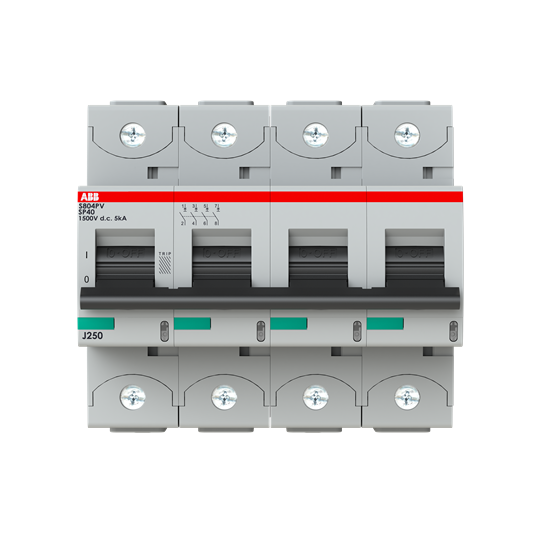

S804PV-SP40 High Performance MCB

Manufacturer's No: S804PV-SP40     Manufacturer: ABB
S804PV-SP40 High Performance MCB

Availability On Request

£474.21
  • S804PV-SP40: 4-pole High Performance Circuit breaker for photovoltaics (DC)
  • Rated current: 40 A
  • Maximum breaking capacity: 5kA at 1500V
  • Voltage compatibility: Up to 1500V DC
  • Tripping mechanisms: Thermal for overload protection, Electromechanic for short circuit protection
  • Compliance: IEC/EN 60947-2 for industrial applications
  • Approvals: Complies with numerous standards for global use
  • Accessory compatibility: Extensive range available
  • Fast arc extinction for enhanced application security


Product

Manufacturer Material ID -
S804PV-SP40
Net Weight -
1.01kg

Additional Product Information

Commodity Code -
85352100
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Built-in depth -
111 Millimetre
Rated voltage -
1500 Volt
Release characteristic -
B
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
5 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
5 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
5 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
5 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
0 Hertz
Number of poles (total) -
4
Number of protected poles -
4
Over voltage category -
3
Pollution degree -
2
Power loss -
14.8 Watt
Rated current -
40 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
1500 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
Other
Voltage type -
Other
Width in number of modular spacings -
6
ABB

Availability On Request

£474.21
