2CCF019586R0001

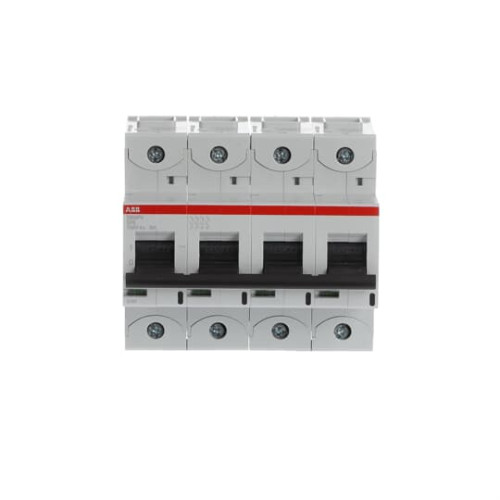

S804PV-SP5 High Performance MCB

Manufacturer's No: S804PV-SP5     Manufacturer: ABB
S804PV-SP5 High Performance MCB

Availability On Request

£424.52
  • Model: S804PV-SP5
  • Type: 4-pole High Performance MCB
  • Application: Photovoltaic (DC)
  • Rated Current: 5 A
  • Maximum Breaking Capacity: 5 kA at 1500V
  • Voltage Range: Up to 1500V DC
  • Features: Cage terminal, current limiting device


Product

Manufacturer Material ID -
S804PV-SP5
Net Weight -
1.01kg

Additional Product Information

Commodity Code -
85352100
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Built-in depth -
111 Millimetre
Rated voltage -
1500 Volt
Release characteristic -
B
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
5 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
5 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
5 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
5 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
0 Hertz
Number of poles (total) -
4
Number of protected poles -
4
Over voltage category -
3
Pollution degree -
2
Power loss -
6 Watt
Rated current -
5 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
1500 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
Other
Voltage type -
Other
Width in number of modular spacings -
6
ABB

Availability On Request

£424.52
