2CCS864002R0324

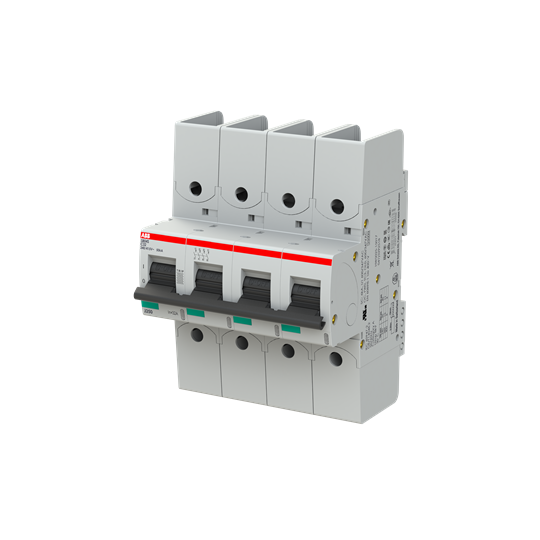

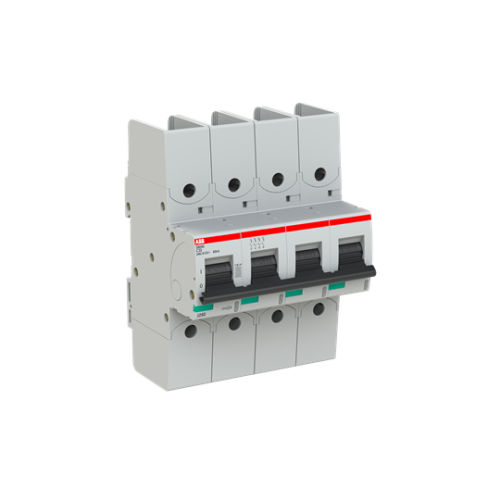

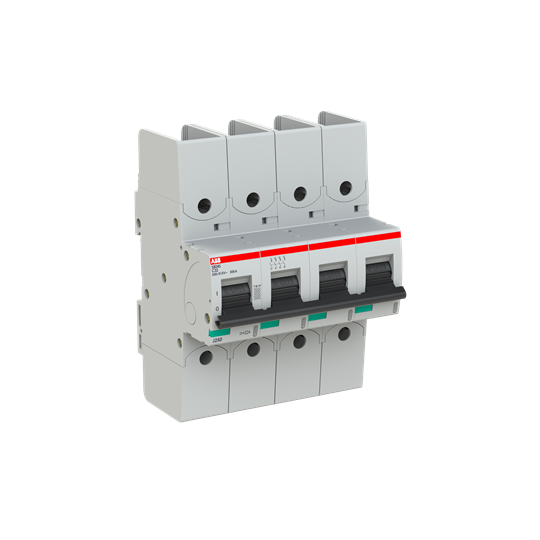

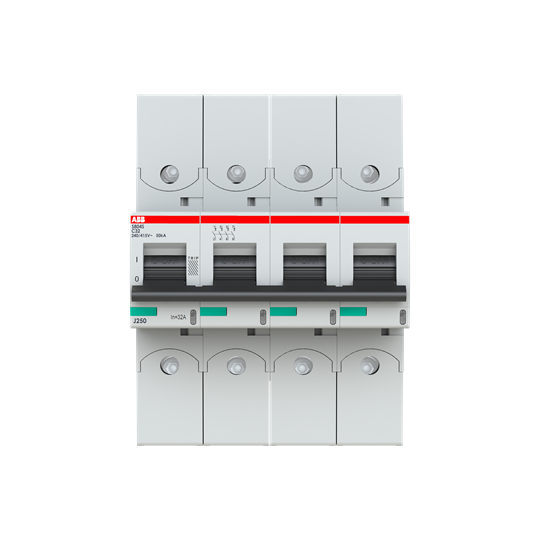

S804S-C32-R High Performance MCB

Manufacturer's No: S804S-C32-R     Manufacturer: ABB
S804S-C32-R High Performance MCB

Availability Back Order

£311.85
  • 4-pole high performance MCB
  • C-characteristic with ring tongue terminal
  • Rated current: 32 A
  • Maximum breaking capacity: 50kA at 240/415V
  • Suitable for voltages up to 400/690V and DC
  • Thermal tripping mechanism for overload protection
  • Electromechanic tripping mechanism for short circuit protection
  • Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards
  • Suitable for residential, commercial, and industrial applications
  • Wide range of accessories available

Read more

  • Fast arc extinction for enhanced application security


Product

Manufacturer Material ID -
S804S-C32-R
Net Weight -
1.03kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Built-in depth -
82.5 Millimetre
Release characteristic -
C
Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
25 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
50 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
4
Number of protected poles -
4
Over voltage category -
4
Pollution degree -
3
Power loss -
12.8 Watt
Rated current -
32 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
690 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
25 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
50 kiloampere
Rated voltage -
400 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
6
ABB

Availability Back Order

£311.85
