2CCS864017R0637

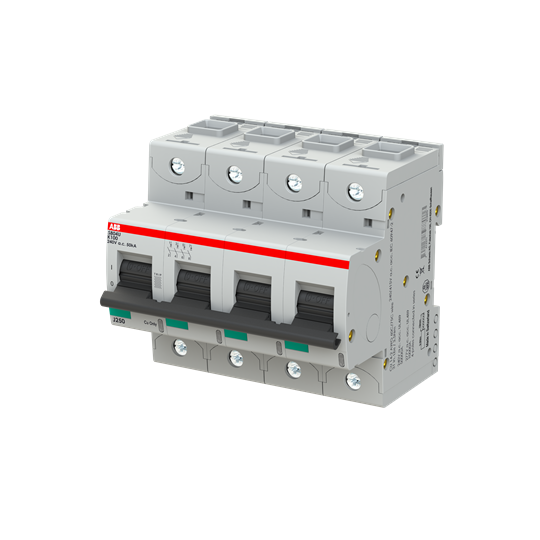

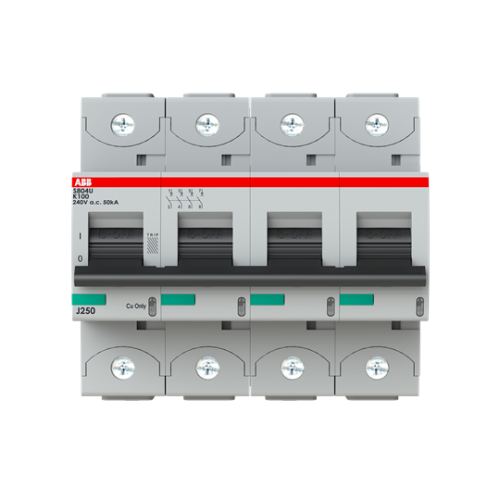

S804U-K100 High Performance MCB

Manufacturer's No: S804U-K100     Manufacturer: ABB
S804U-K100 High Performance MCB

Availability On Request

£654.46
  • Type: High Performance MCB
  • Model: S804U-K100
  • Poles: 4
  • Characteristic: K
  • Current Rating: 100A
  • Breaking Capacity: 50kA
  • Voltage: 240/415VAC


Product

Manufacturer Material ID -
S804U-K100
Net Weight -
1.01kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
40 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
40 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
50 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
4
Number of protected poles -
4
Over voltage category -
3
Pollution degree -
2
Power loss -
8.3 Watt
Rated current -
100 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
690 Volt
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
50 kiloampere
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
K
Voltage type -
Other
Width in number of modular spacings -
6
