2CCF019592R0001

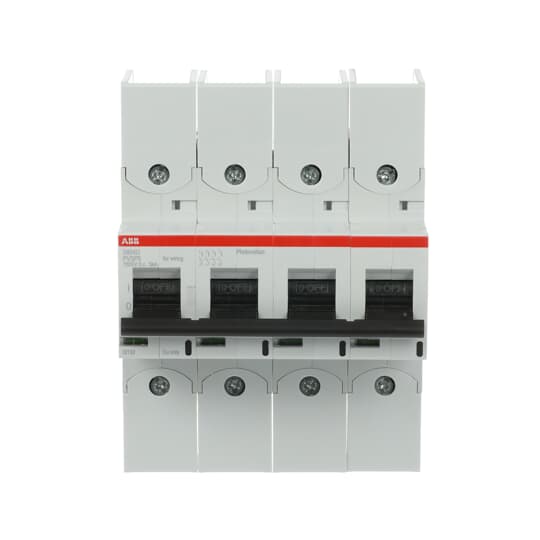

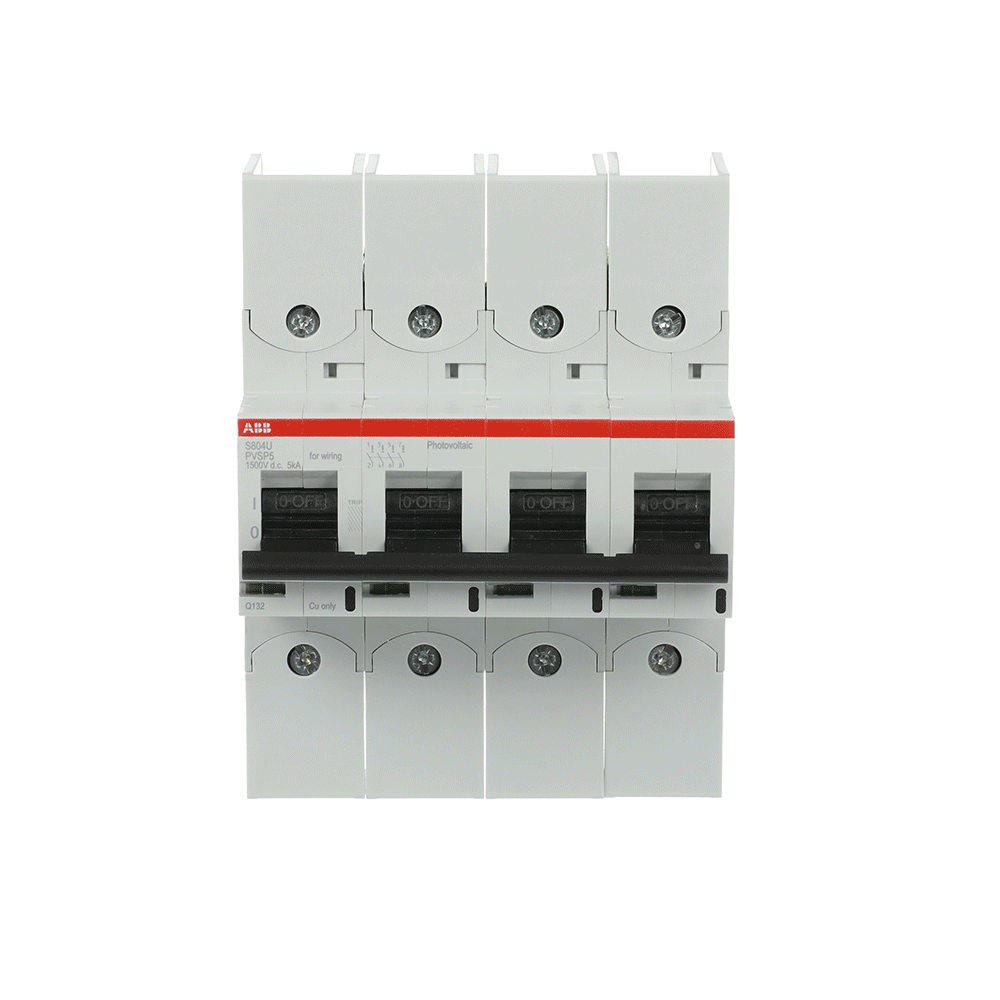

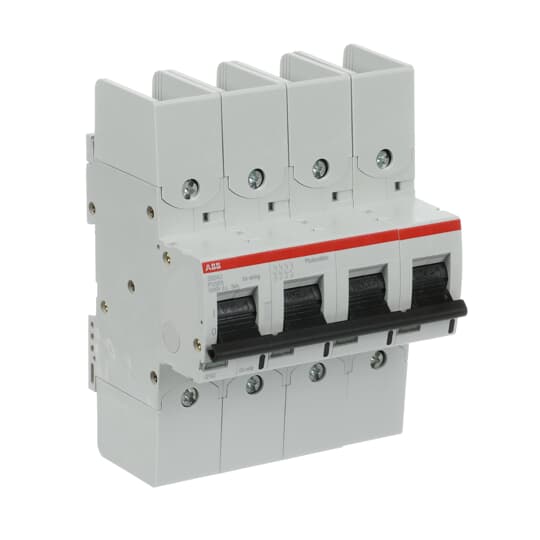

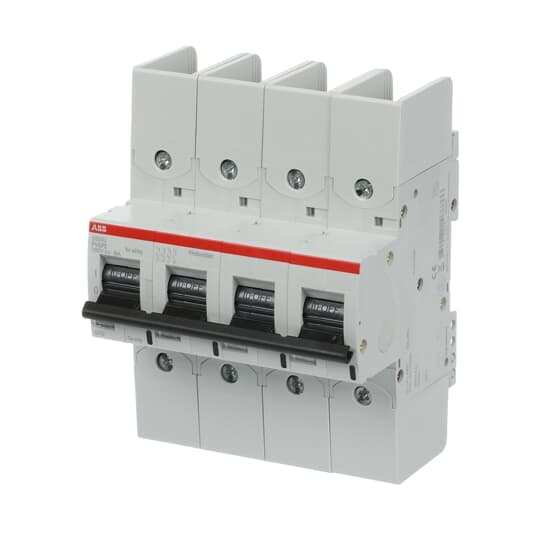

S804U-PVSP5 High Performance MCB

Manufacturer's No: S804U-PVSP5     Manufacturer: ABB
S804U-PVSP5 High Performance MCB

Availability On Request

£853.47
  • High performance miniature circuit breaker (MCB)
  • 4-pole configuration
  • Tested according to UL489B standards
  • Rated for 1500V DC
  • Current rating: 5A


Product

Manufacturer Material ID -
S804U-PVSP5
Net Weight -
1.01kg

Additional Product Information

Commodity Code -
85352100
Country of Origin -
CH
UNSPSC -
39122330

Technical Specification

Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
5 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
5 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
0 Hertz
Number of poles (total) -
4
Number of protected poles -
4
Over voltage category -
3
Pollution degree -
3
Power loss -
6 Watt
Rated current -
5 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
1500 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
Other
Width in number of modular spacings -
6
