547935

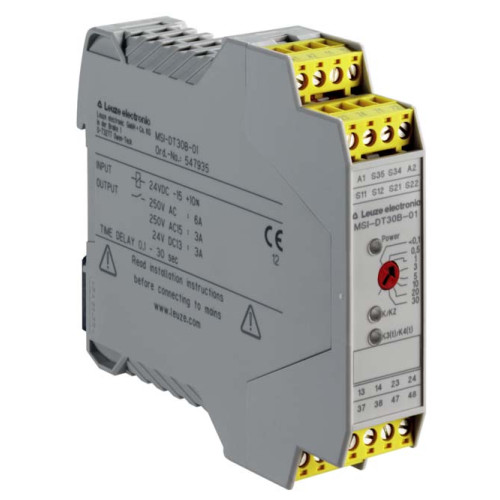

Safety relay SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; STOP category: 0, IEC/EN 602

Manufacturer's No: MSI-DT30B-01     Manufacturer: Leuze
Safety relay SIL: 3, IEC 61508; Performance Level (PL): e, EN ISO 13849-1; Category: 4, EN ISO 13849; STOP category: 0, IEC/EN 60204-1; Contacts (NO contact/NC contact): 2 NO contacts / -; Connection

Availability Back Order

POA
  • Application: Moving guards, electro-sensitive protective equipment for controlled stopping (stop category 0 and 1 in accordance with IEC 60204)
  • Functions: Cross circuit monitoring, one- or two-channel operation, start/restart interlock (RES), time-delayed shutdown (STOPP1)
  • Restart: Automatic, manual
  • SIL: 3, IEC 61508
  • Performance Level (PL): e, EN ISO 13849-1
  • Category: 4, EN ISO 13849-1
  • STOP category: 0, IEC/EN 60204-1
  • Contacts: 2 NO contacts
  • Connection: Screw terminal
  • Dimensions: 22.5 mm x 99 mm x 114.5 mm

Read more

  • Ambient temperature, operation: -20°C to 55°C
  • Certifications: c UL US, TÜV Rheinland

Follow-up article



Product

Manufacturer Material ID -
MSI-DT30B-01
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

-
Leuze
Release-delay -
- Second
Number of outputs, safety related, undelayed, semiconductors -
-
Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
With approval for T‹V -
Voltage type for actuating -
UN
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0
With approval for TÜV -
Thumbnail of product picture -
Depth -
114.5 Millimetre
Evaluation inputs -
Other
Height -
99 Millimetre
Model -
Basic device
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, safety related, delayed, with contact -
2
Number of outputs, safety related, undelayed, with contact -
2
Number of outputs, signalling function, delayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
0
Operating voltage at AC 50 Hz -
24 Volt
Operating voltage at AC 60 Hz -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Power consumption -
1.8 Watt
Rail mounting possible -
Rated switch current -
6 Ampere
SIL according to IEC 61508 -
3
Stop category acc. to IEC 60204 -
0
Suitable for monitoring of optoelectronic protection equipment -
Supply voltage AC 50 Hz -
24 Volt
Supply voltage AC 60 Hz -
24 Volt
Type of control voltage 1 -
AC
Type of electric connection -
Clip connection
Type of safety acc. IEC 61496-1 -
None
Voltage type (operating voltage) -
AC/DC
Voltage type of supply voltage -
AC/DC
Width -
22.5 Millimetre
With feedback circuit -
With start input -
Leuze

Availability Back Order

POA
