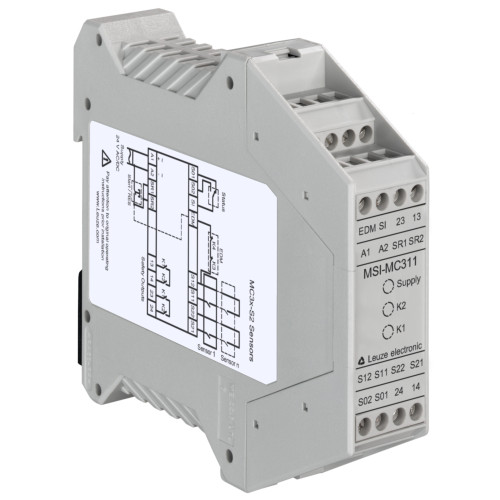

Safety Relay for MC3x switches with 2no Contacts

Manufacturer's No: MSI-MC311     Manufacturer: Leuze
Safety Relay for MC3x switches with 2no Contacts

Availability Available to order

POA
  • Safety Relay for MC3x switches with 2 normally open (NO) contacts
  • Performance level (PL): Up to and including e, EN ISO 13849-1
  • Category: Up to and including 4
  • Response time: 20 ms
  • Number of safety-related switching outputs (OSSDs): 2 Pieces
  • Number of digital switching outputs: 1 Piece
  • Safety-related switching output 1: Relay, NO
  • Safety-related switching output 2: Relay, NO
  • Digital switching output 1: Relay, NO
  • Connection: Screw terminal

Read more

  • Dimensions: 22.5 mm x 99 mm x 113.6 mm
  • Ambient temperature, operation: -5°C to 55°C
  • Certifications: CE, c UL US, TUV SUd
  • Functions: Start/restart interlock (RES), Automatic start/restart, Static contactor monitoring (EDM), Stop function according to category Stop 0


Product

Manufacturer Material ID -
MSI-MC311
Net Weight -
0.20kg

Additional Product Information

Minimum Order Quantity -
1
UNSPSC -
39122200

Technical Specification

-
Leuze
Model -
UN
Release-delay -
- Second
Number of outputs, safety related, undelayed, with contact -
-
Number of outputs, safety related, delayed, with contact -
-
Number of outputs, safety related, delayed, semiconductors -
-
Number of outputs, signalling function, undelayed, with contact -
-
Number of outputs, signalling function, delayed, with contact -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Number of outputs, signalling function, delayed, semiconductors -
-
Type of electric connection -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Type of safety acc. IEC 61496-1 -
UN
With approval for T‹V -
Voltage type for actuating -
UN
Evaluation inputs -
UN
SIL according to IEC 61508 -
UN
Width -
225 Millimetre
Height -
99 Millimetre
Depth -
1136 Millimetre
With approval according to UL -
Number of outputs, safety related, undelayed, semiconductors -
2
Rail mounting possible -
With approval for TÜV -
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0
Leuze
