63001126

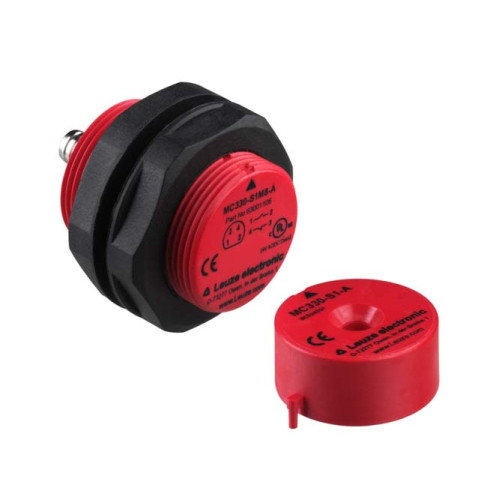

Magnetically coded sensor, M8 4-Pin plug, M30 Housing (6mm range), 2NO

Manufacturer's No: MC330-S2M8-A     Manufacturer: Leuze
Magnetically coded sensor, M8 4-Pin plug, M30 Housing (6mm range), 2NO

Availability Available to order

£71.00
  • Contact Allocation: 2NO
  • Connection: Connector, M8, Metal, 4-pin
  • Dimensions: M30, 36 mm
  • Housing Material: Plastic, Glass Fiber Reinforced (PPS), Self-extinguishing
  • External Actuator: Magnetically Coded
  • Cut-out Point (OFF), Min.: 15 mm
  • Assured Cut-out Distance (Sar), Min.: 18 mm
  • Assured Cut-in Distance (Sao), Max.: 6 mm
  • Degree of Protection: IP 67
  • Certifications: c UL US, TÜV Süd (with suitable safety relay)

Accessories

Others



Product

Manufacturer Material ID -
MC330-S2M8-A
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
90328900
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39122200

Technical Specification

-
Leuze
Thumbnail of product picture -
Ambient temperature -
-20 Degrees celsius
Coating housing -
Uncoated
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Plastic
Length of sensor -
36 Millimetre
Max. output current at protected output -
100 Milliampere
Mechanical mounting condition for sensor -
Other
Min. output current -
100 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
0
Protected switch distance OFF -
18 Millimetre
Protected switch distance ON -
6 Millimetre
Suitable for safety functions -
Switching distance -
15 Millimetre
Type of actuation -
Magnet
Type of electric connection -
Connector M8
Voltage type -
AC/DC
Leuze
