63001026

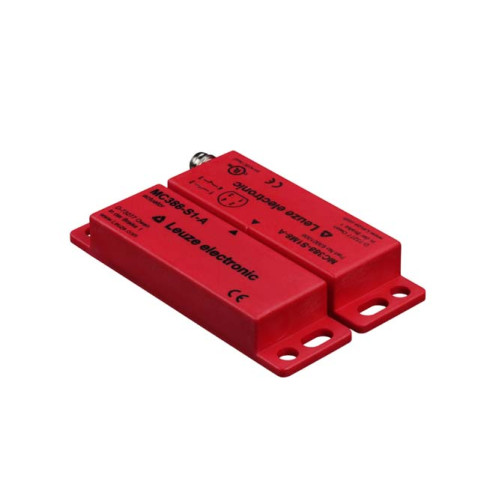

Magnetically coded sensor, M8 4-Pin plug, 85mm x 25mm (9mm range), 2NO

Manufacturer's No: MC388-S2M8-A     Manufacturer: Leuze
Magnetically coded sensor, M8 4-Pin plug, 85mm x 25mm (9mm range), 2NO

Availability Available to order

£65.00
  • Contact Allocation: 2NO
  • Connection: Connector, M8, Metal, 4-pin
  • Dimension: 25mm x 13mm x 88mm
  • Housing Material: Plastic, Glass Fiber Reinforced (PPS), self-extinguishing
  • External Actuator: Magnetically coded
  • Cut-out Point (OFF), min.: 19mm
  • Assured Cut-out Distance (Sar), min.: 22mm
  • Assured Cut-in Distance (Sao), max.: 9mm
  • Degree of Protection: IP 67
  • Certifications: c UL US, TÜV Süd (with suitable safety relay)

Accessories

Others



Product

Manufacturer Material ID -
MC388-S2M8-A
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
90328900
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39122200

Technical Specification

-
Leuze
Thumbnail of product picture -
Ambient temperature -
-20 Degrees celsius
Coating housing -
Uncoated
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
13 Millimetre
Housing material -
Plastic
Length of sensor -
88 Millimetre
Max. output current at protected output -
100 Milliampere
Mechanical mounting condition for sensor -
Other
Min. output current -
100 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
0
Protected switch distance OFF -
22 Millimetre
Protected switch distance ON -
9 Millimetre
Suitable for safety functions -
Switching distance -
19 Millimetre
Type of actuation -
Magnet
Type of electric connection -
Connector M8
Voltage type -
AC/DC
Width sensor -
25 Millimetre
Leuze

Availability Available to order

£65.00
