63000502

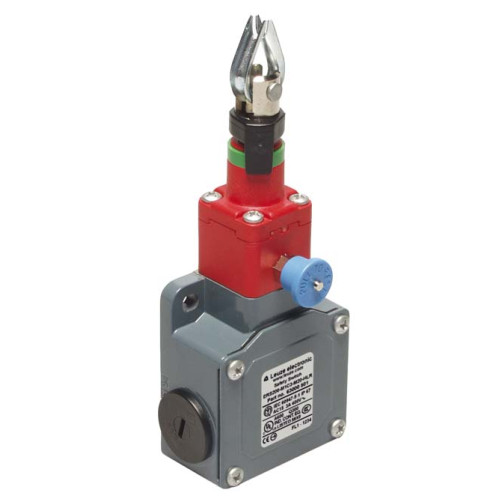

E-STOP rope switch Contact allocation: 2NC + 1NO; Cable entry: 3 Piece(s), M20 x 1.5; Connection: Terminal, 6 -pin; Dimension: 56

Manufacturer's No: ERS200-M4C3-M20-HLR     Manufacturer: Leuze
E-STOP rope switch Contact allocation: 2NC + 1NO; Cable entry: 3 Piece(s), M20 x 1.5; Connection: Terminal, 6 -pin; Dimension: 56 mm x 47.8 mm x 129 mm; Housing material: Metal, ZAMAK; Installation p

Availability Back Order

£93.00
  • Contact Allocation: 2NC + 1NO
  • Cable Entry: 3 Pieces, M20 x 1.5
  • Connection: Terminal, 6-pin
  • Dimensions: 56 mm x 47.8 mm x 129 mm
  • Housing Material: Metal, ZAMAK
  • Installation Position: On rope pull axis
  • Switch Type: E-Stop command device, EN ISO 13850
  • External Actuator: Rope
  • Maximum Rope Length (at 20°C temperature difference): 24 meters
  • Actuation Force (Pull-out): 83 N

Read more

  • Actuation Directions: On longitudinal axis
  • Actuating Path with Forced Separation: 8 mm
  • Degree of Protection: IP 67
  • Certifications: IMQ, c UL US

Accessories

Others



Product

Manufacturer Material ID -
ERS200-M4C3-M20-HLR
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Leuze
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Ambient temperature -
-25 Degrees celsius
Colour -
Silver
Degree of protection (IP rating) -
IP67
Max. length of pull cord -
24 Metre
Number of actuation directions -
1
Leuze

Availability Back Order

£93.00
