570501

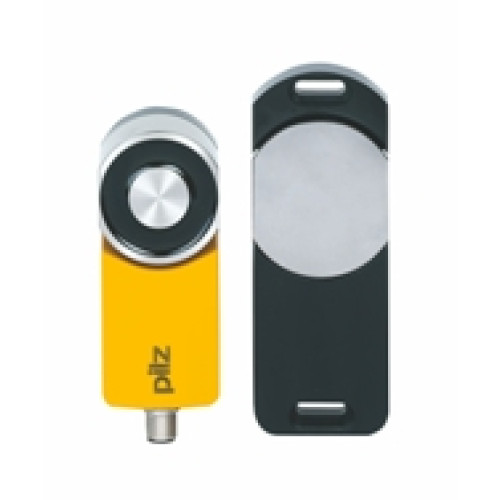

Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Coding: fully

Manufacturer's No: PSEN sl-0.5p 2.1 / PSEN sl-0.5 1unit     Manufacturer: Pilz
Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Coding: fully coded, 8-pin M12 connector, 4 LEDs, IP67, package contents = sensor w

Availability Available to order

POA
  • Safety gate system for applications up to SIL3/PLe/Cat4
  • Magnetic holding force: 500N for process protection
  • Coding: fully coded
  • Connector: 8-pin M12
  • LEDs: 4
  • IP rating: IP67
  • Package contents: sensor with standard actuator

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PSEN sl-0.5p 2.1 / PSEN sl-0.5 1unit
Net Weight -
0.99kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pilz
Housing material -
Aluminium
Ambient temperature during operating -
-25 Degrees celsius
Degree of protection (IP rating) -
IP67
Height of sensor -
122 Millimetre
Length of sensor -
44 Millimetre
Width sensor -
45 Millimetre
Pilz

Availability Available to order

POA
