751136

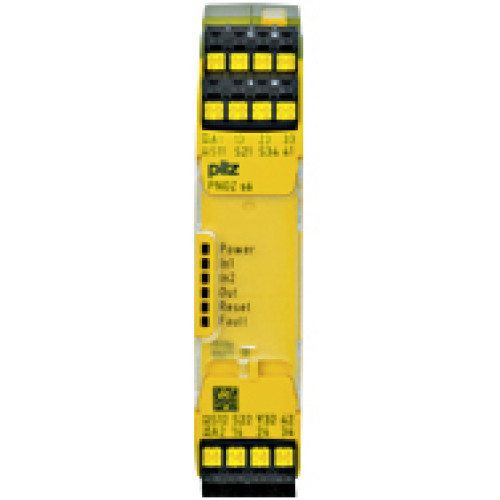

PNOZsigma safety relay (standalone) two-hand control relay inputs: Per pushbutton 1 N/O 1 N/C

Manufacturer's No: PNOZ s6 C 48-240VACDC 3 n/o 1 n/c     Manufacturer: Pilz
PNOZsigma safety relay (standalone) two-hand control relay inputs: Per pushbutton 1 N/O 1 N/C

Availability Available to order

£372.45
  • Safety relay for standalone use
  • Two-hand control relay
  • Inputs: 1 N/O, 1 N/C per pushbutton
  • Outputs: 3 N/O, 1 N/C, 1 SC
  • Supply voltage: 48 - 240V AC/DC
  • Width: 22.5 mm
  • Plug-in spring-loaded terminals
  • Simultaneity monitoring with two-hand pushbutton

Accessories



Product

Manufacturer Material ID -
PNOZ s6 C 48-240VACDC 3 n/o 1 n/c
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

With detachable clamps -
Rail mounting possible -
Depth -
120 Millimetre
Height -
100 Millimetre
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
AC/DC
Width -
22.5 Millimetre
With approval according to UL -
With approval for TÜV -
Pilz

Availability Available to order

£372.45
