750156

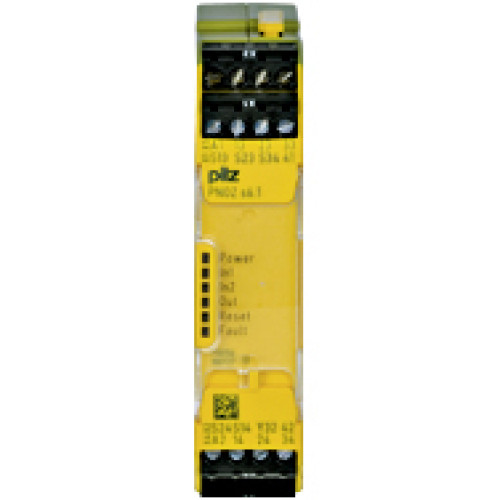

PNOZsigma safety relay (standalone) two-hand control relay inputs: Per pushbutton 1 N/O 1 N/C

Manufacturer's No: PNOZ s6.1 48-240VACDC 3 n/o 1 n/c     Manufacturer: Pilz
PNOZsigma safety relay (standalone) two-hand control relay inputs: Per pushbutton 1 N/O 1 N/C

Availability Back Order

£221.51
  • PNOZsigma safety relay (standalone)
  • Inputs: 1 N/O, 1 N/C per pushbutton
  • Outputs: 3 N/O, 1 N/C, 1 SC
  • Supply Voltage: 48 - 240V AC/DC
  • Width: 22.5 mm
  • Plug-in screw terminals
  • Simultaneity monitoring with two-hand pushbutton

Accessories



Product

Manufacturer Material ID -
PNOZ s6.1 48-240VACDC 3 n/o 1 n/c
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
Pilz
With detachable clamps -
Rail mounting possible -
Type of switch function of the inputs -
Normally open contact
Depth -
120 Millimetre
Height -
98 Millimetre
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC/DC
Width -
22.5 Millimetre
With approval according to UL -
With approval for TÜV -
Pilz

Availability Back Order

£221.51
