750177

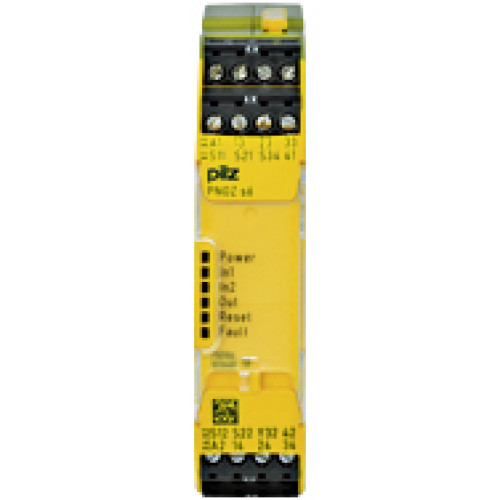

PNOZsigma contact expansion outputs: 4 N/O 1 N/C UB 24 V DC width: 17.5 mm plug-in screw terminals

Manufacturer's No: PNOZ s7.2 24VDC 4 n/o 1 n/c expand     Manufacturer: Pilz
PNOZsigma contact expansion outputs: 4 N/O 1 N/C UB 24 V DC width: 17.5 mm plug-in screw terminals

Availability In Stock

£143.72
  • Contact Expansion Module: PNOZsigma
  • Outputs: 4 N/O, 1 N/C
  • Supply Voltage: 24 V DC
  • Width: 17.5 mm
  • Terminal Type: Plug-in screw terminals
  • Allows connection with safety-related control components
  • Option to mount additional contact blocks to the right

Accessories



Product

Manufacturer Material ID -
PNOZ s7.2 24VDC 4 n/o 1 n/c expand
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Pilz
Model -
Expansion device
With approval according to UL -
With detachable clamps -
With feedback circuit -
Number of outputs, safety related, undelayed, with contact -
4
Number of outputs, signalling function, undelayed, with contact -
1
Number of outputs, signalling function, undelayed, semiconductors -
1
Rail mounting possible -
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Depth -
120 Millimetre
Height -
98 Millimetre
Type of electric connection -
Screw connection
Width -
17.5 Millimetre
With approval for TÜV -
Pilz

Availability In Stock

£143.72
