750109

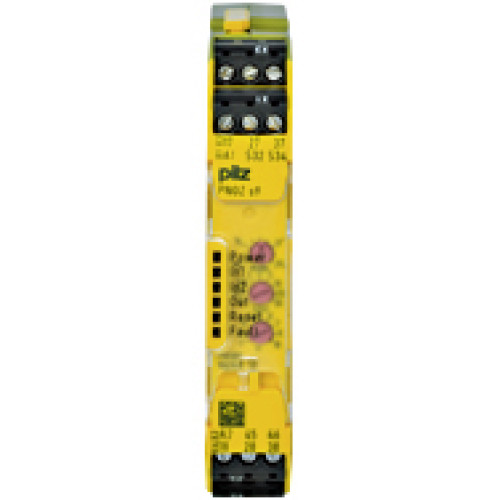

PNOZsigma safety relay (standalone) inputs: 1/2-channel wiring outputs: 3 N/O 1 N/C

Manufacturer's No: PNOZ s9 24VDC 3 n/o t 1 n/c t     Manufacturer: Pilz
PNOZsigma safety relay (standalone) inputs: 1/2-channel wiring outputs: 3 N/O 1 N/C

Availability Back Order

£185.64
  • Safety relay (standalone)
  • Inputs: 1/2-channel wiring
  • Outputs: 3 N/O, 1 N/C
  • Time delay: 0.04 - 300 seconds
  • Rated voltage: 24 V DC
  • Width: 17.5 mm
  • Plug-in screw terminals
  • Suitable for contact expansion with safety-related control components
  • Enables safe timer functions like energizing, fallback, and pulsing

Accessories



Product

Manufacturer Material ID -
PNOZ s9 24VDC 3 n/o t 1 n/c t
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
Pilz
Model -
Expansion device
Release-delay -
0 Second
With approval according to UL -
With detachable clamps -
Number of outputs, safety related, delayed, with contact -
3
Number of outputs, signalling function, undelayed, with contact -
1
Rail mounting possible -
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Depth -
120 Millimetre
Height -
98 Millimetre
Type of electric connection -
Screw connection
Width -
17.5 Millimetre
With approval for TÜV -
With feedback circuit -
Pilz
