506322

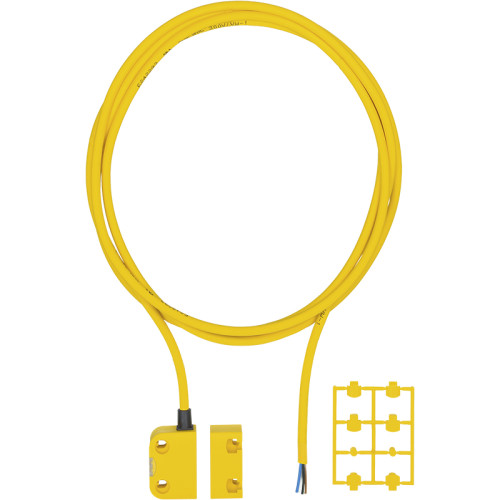

Magnetic safety switch 2 N/O, square design, IP6K9K, operating distance 10 mm, 5 m cable, height design 18 mm. PU = 1 sensor with

Manufacturer's No: PSEN ma1.4a-50/PSEN ma1.4-10mm/ 1unit     Manufacturer: Pilz
Magnetic safety switch 2 N/O, square design, IP6K9K, operating distance 10 mm, 5 m cable, height design 18 mm. PU = 1 sensor with actuator.

Availability Back Order

£48.35
  • Magnetic safety switch with 2 normally open contacts
  • Square design with a switching distance of 10 mm
  • IP6K9K rated for high-pressure and high-temperature washdowns
  • Compact height design of 18 mm
  • Comes with a 5 meter cable
  • Package includes 1 sensor with actuator

Accessories



Product

Manufacturer Material ID -
PSEN ma1.4a-50/PSEN ma1.4-10mm/ 1unit
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Pilz
Housing material -
Plastic
Suitable for safety functions -
Number of protected contact energized outputs -
2
Type of electric connection -
Cable
Type of switching output -
Dry reed contact
Construction type housing -
Special construction
Protected switch distance OFF -
10 Millimetre
Protected switch distance ON -
22 Millimetre
Mechanical mounting condition for sensor -
Not flat
Type of actuation -
Magnet
Performance level acc. to EN ISO 13849-1 -
Level e
Thumbnail of product picture -
Medien_800/Pictures_800/506322_800.jpg
Ambient temperature -
-10 Degrees celsius
Degree of protection (IP rating) -
IP67
Height of sensor -
37 Millimetre
Length of sensor -
18 Millimetre
Switching distance -
0 Millimetre
Voltage type -
DC
Width sensor -
26.4 Millimetre
Pilz

Availability Back Order

£48.35
