541209

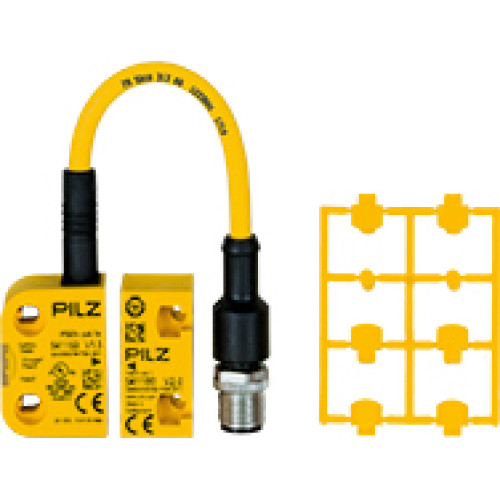

RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, can be connected in series IP67, operating distance 11 mm, S

Manufacturer's No: PSEN cs4.2 M12/8-0.15m/PSEN cs4.1 1Unit     Manufacturer: Pilz
RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, can be connected in series IP67, operating distance 11 mm, Sao = 8 mm, Sar = 20 mm, one direction of actuation PU = 1 piece unique

Availability Back Order

£140.24
  • RFiD safety switch with 2 safe SC outputs
  • 8-pin M12 male connector with 0.15 m cable
  • Series connection supported for SDD
  • IP67 rated for protection
  • Switching distance of 11 mm
  • Actuating direction: one
  • Fully coded switch with actuator included
  • Actuation distances: Sao = 8 mm, Sar = 20 mm

Accessories



Product

Manufacturer Material ID -
PSEN cs4.2 M12/8-0.15m/PSEN cs4.1 1Unit
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Pilz
Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Cable with connector
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
37 Millimetre
Length of sensor -
18 Millimetre
Width sensor -
26 Millimetre
Pilz

Availability Back Order

£140.24
