630804

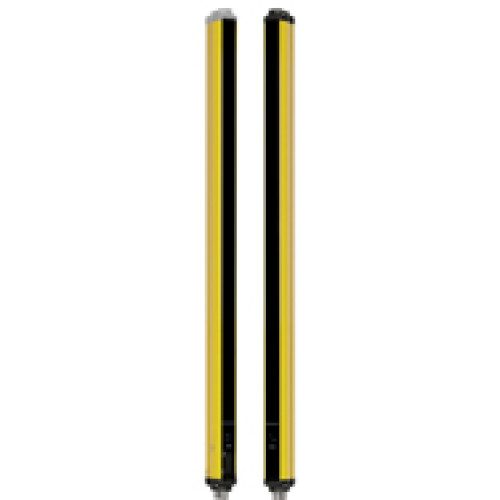

Safety light curtain, type 2, PL c, body protection Protected field height 500 mm, supply voltage 24 V, connector M12, sender: 4-p

Manufacturer's No: PSEN op2B-2-050/1     Manufacturer: Pilz
Safety light curtain, type 2, PL c, body protection Protected field height 500 mm, supply voltage 24 V, connector M12, sender: 4-pin, receiver: 5-pin, with Muting function, Connection cable not suppli

Availability Back Order

£667.33
  • Safety light guard Type 2 with PL c
  • Body protection with a protected field height of 500 mm
  • Muting function included
  • Supply voltage: 24 V
  • Connector type: M12
  • Transmitter with 4-pin and 5-pin connectors
  • Receiver with 5-pin and 8-pin connectors
  • Connection cable not included

Accessories



Product

Manufacturer Material ID -
PSEN op2B-2-050/1
Net Weight -
3.10kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Number of semiconductor outputs with signalling function -
0
Ambient temperature -
-10 Degrees celsius
Height -
653 Millimetre
Length -
41.2 Millimetre
Max. output current at protected output -
500 Milliampere
Model -
Transmitter and receiver separated
Number of beams -
2
Number of protected semiconductor outputs -
2
Reaction time -
14 Millisecond
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
50 Metre
Type of safety acc. IEC 61496-1 -
2
Voltage type -
DC
Width -
35 Millimetre
With muting function -
Pilz
