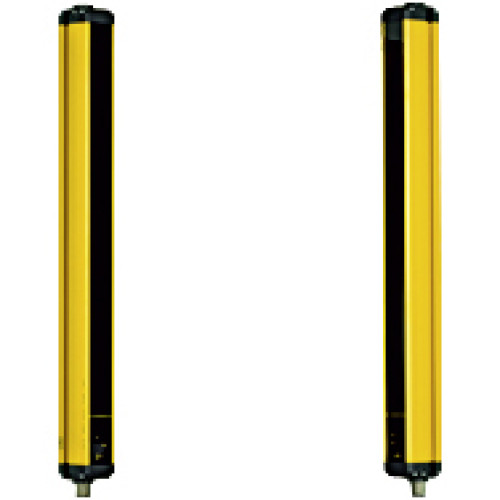

Safety light curtain, type 4, PL e, hand protection (resolution 30mm) Protected field height 750 mm, supply voltage 24 V, connecto

Manufacturer's No: PSEN op4H-s-30-075/1     Manufacturer: Pilz
Safety light curtain, type 4, PL e, hand protection (resolution 30mm) Protected field height 750 mm, supply voltage 24 V, connector M12, sender: 4-pin, receiver: 8-pin, Connection cable not supplied w

Availability Back Order

£1,715.00
  • Safety light guard Type 4 with PL e certification
  • Hand protection with a resolution of 30 mm
  • Protected field height of 750 mm
  • Supply voltage: 24 V
  • Connector type: M12
  • Transmitter connector: 4-pin
  • Receiver connector: 8-pin
  • Connection cable not included

Mandatory additional product



Product

Manufacturer Material ID -
PSEN op4H-s-30-075/1
Net Weight -
4.24kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pilz
Number of semiconductor outputs with signalling function -
0
Ambient temperature -
0 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
833.2 Millimetre
Length of sensor -
36.9 Millimetre
Number of protected semiconductor outputs -
2
Reaction time -
16 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
750 Millimetre
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
19 Metre
Type of safety acc. IEC 61496-1 -
4
Voltage type -
DC
Width sensor -
32.3 Millimetre
Pilz

Availability Back Order

£1,715.00
