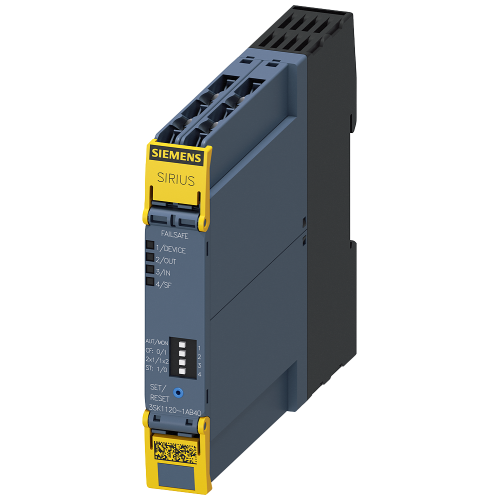

3SK11201AB40

3SK1 - Advanced basic units with 1 x single or dual channel input + 1 x F-DQ (semiconductor outputs), 24VDC

Manufacturer's No: 3SK1120-1AB40     Manufacturer: Siemens

Availability Back Order

£107.69
  • SIRIUS safety relay Basic unit Advanced series
  • Electronic enabling circuits: 1 enabling circuit, 0.5 A
  • Rated voltage: Us = 24 V DC
  • Screw terminal connection
Presentation video
Question and Answer (Q&A video)
Instructional video
Product video


Product

Manufacturer Material ID -
3SK1120-1AB40
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

-
Siemens
Release-delay -
- Second
Number of outputs, signalling function, delayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Type of safety acc. IEC 61496-1 -
UN
With approval for T‹V -
Category according to EN 954-1 -
UN
Rated control supply voltage Us at DC -
24 Volt
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
0
Model -
Other
Number of outputs, safety related, delayed, semiconductors -
0
Number of outputs, signalling function, undelayed, with contact -
0
Number of outputs, signalling function, delayed, with contact -
0
Number of outputs, signalling function, undelayed, semiconductors -
0
Rated control supply voltage at DC -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
Voltage type for actuating -
DC
Depth -
121.6 Millimetre
Evaluation inputs -
One- and two-channel
Height -
100 Millimetre
Number of outputs, safety related, delayed, with contact -
0
Number of outputs, safety related, undelayed, semiconductors -
1
Number of outputs, safety related, undelayed, with contact -
0
SIL according to IEC 61508 -
3
Stop category acc. to IEC 60204 -
0
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of magnetic switches -
Suitable for monitoring of optoelectronic protection equipment -
Suitable for monitoring of position switches -
Type of electric connection -
Screw connection
Width -
17.5 Millimetre
With approval according to UL -
With approval for TÜV -
With feedback circuit -
With start input -

Availability Back Order

£107.69
