3082137

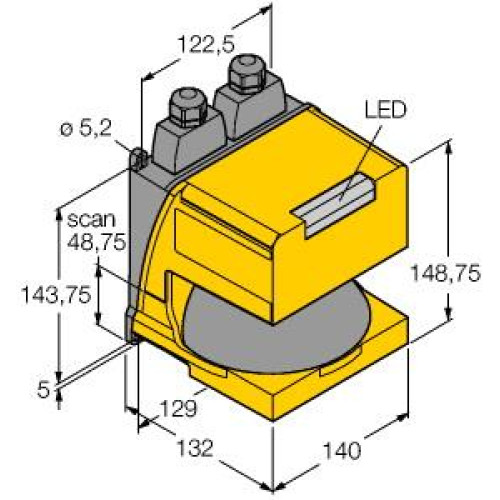

Safety Laser Scanners, Stand-Alone Device, Up to 8 Protective Fields, Max. 4 m

Manufacturer's No: AG4-4E     Manufacturer: Turck Banner
Safety Laser Scanners, Stand-Alone Device, Up to 8 Protective Fields, Max. 4 m

Availability Available to order

POA
  • Safety Laser Scanner
  • Stand-alone device
  • Up to 8 protective fields, adjustable
  • Max. range: 4 m
  • Angular range: max. 190°
  • Angular resolution: 0.36°
  • Resolution: 30 mm at 1600 mm distance, 70 mm at 4000 mm distance
  • Electrical connection: SUB-D15 connector
  • Connection cable: AG4-CPD15 (not included)
  • Laser class 1 according to EN 60825-1

Read more

  • Minimum radiance factor: 1.8% in protective field, 20% in warning field
  • Protective field: 0.2 to 4 m
  • Warning field: 0.2 to 15 m
  • Scan field: 0 to 50 m
  • Operating voltage: 17 to 28 VDC
  • Protection class: IP65
  • Personnel safety category: PLd according to ISO 13849-1
  • Category 3 according to EN 945-1, type 3 (IEC 61496)
  • SIL 2 according to IEC 61508


Product

Manufacturer Material ID -
AG4-4E
Net Weight -
2.71kg

Additional Product Information

Commodity Code -
85437090990
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151804
