2CDG110244R0011

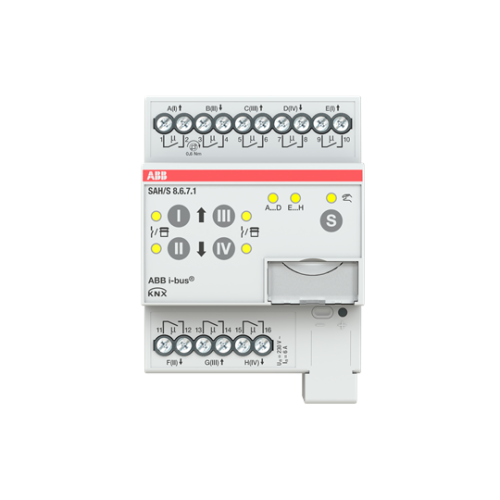

SAH/S8.6.7.1 Switch/Shutter Actuator, 8-fold, 6 A, MDRC

Manufacturer's No: SAH/S 8.6.7.1     Manufacturer: ABB
SAH/S8.6.7.1 Switch/Shutter Actuator, 8-fold, 6 A, MDRC

Availability Back Order

£300.86
  • SAH/S8.6.7.1 Switch/Shutter Actuator
  • 8 independent switching relays
  • 6 A compact combi switch actuator
  • Outputs can be used individually for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives
  • Manual operation with the option to disable
  • KNX powered, no additional power supply required


Product

Manufacturer Material ID -
SAH/S 8.6.7.1
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Bus system KNX -
Degree of protection (IP rating) -
IP20
Different phases connectable -
Local operation/hand operation -
Max. number of switching contacts -
8
Max. switching current -
6 Ampere
Max. switching power -
1200 Watt
Minimum depth of back box -
63.5 Millimetre
Mounting method -
DRA (DIN-rail adapter)
Other bus systems -
None
Output power -
1200 Watt
Rated current -
6 Ampere
Rated operating voltage -
230 Volt
Width in number of modular spacings -
4
With LED indication -
