2CDG110246R0011

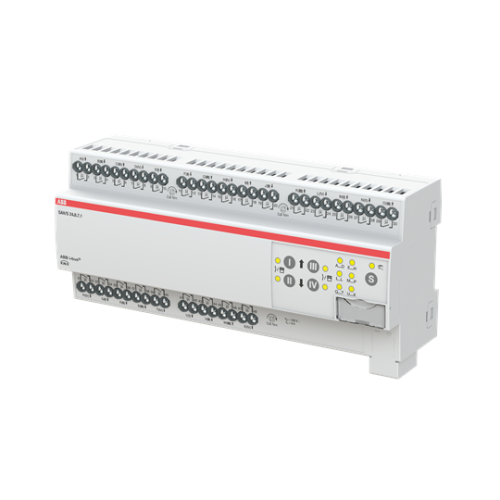

SAH/S24.6.7.1 Switch/Shutter Actuator, 24-fold, 6 A, MDRC

Manufacturer's No: SAH/S24.6.7.1     Manufacturer: ABB
SAH/S24.6.7.1 Switch/Shutter Actuator, 24-fold, 6 A, MDRC

Availability Back Order

£537.16
  • SAH/S24.6.7.1 Switch/Shutter Actuator
  • 24 independent switching relays
  • Compact design with 6 A capacity
  • Outputs can be used individually or in pairs
  • Suitable for controlling 230 V AC roller shutter or blind drives
  • Manual operation with the option to disable
  • KNX powered, no additional power supply needed


Product

Manufacturer Material ID -
SAH/S24.6.7.1
Net Weight -
0.83kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Bus system KNX -
Degree of protection (IP rating) -
IP20
Different phases connectable -
Local operation/hand operation -
Max. number of switching contacts -
24
Max. switching current -
6 Ampere
Max. switching power -
1200 Watt
Minimum depth of back box -
64.5 Millimetre
Mounting method -
DRA (DIN-rail adapter)
Other bus systems -
None
Output power -
1200 Watt
Rated current -
6 Ampere
Rated operating voltage -
230 Volt
Width in number of modular spacings -
12
With LED indication -
ABB

Availability Back Order

£537.16
