2CDG110260R0011

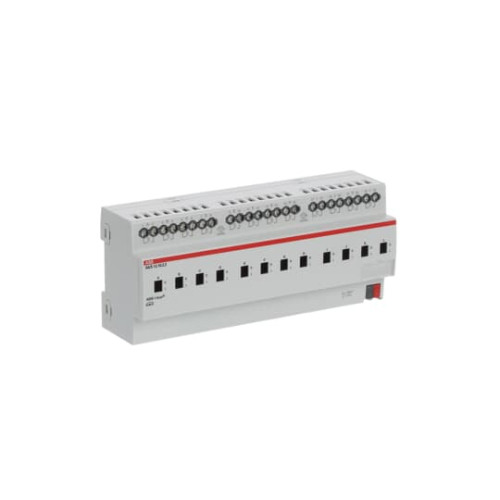

SA/S12.10.2.2 Switch Actuator, 12-fold, 10 A, MDRC

Manufacturer's No: SA/S12.10.2.2     Manufacturer: ABB
SA/S12.10.2.2 Switch Actuator, 12-fold, 10 A, MDRC

Availability Back Order

£397.16
  • SA/S12.10.2.2 Switch Actuator
  • 12-fold, 10 A
  • MDRC (Medium Data Rate Control)
  • Uses potential free contacts to switch 12 independent electrical loads
  • Compatible with ABB i-bus® KNX system
  • Manual operation and display of switching state
  • Suitable for loads with high surge currents (e.g. fluorescent lighting acc. EN 60669)
  • Powered by KNX, no additional power supply required


Product

Manufacturer Material ID -
SA/S12.10.2.2
Net Weight -
0.72kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Bus system KNX -
Degree of protection (IP rating) -
IP20
Different phases connectable -
Local operation/hand operation -
Max. number of switching contacts -
12
Max. switching current -
10 Ampere
Max. switching power -
2500 Watt
Minimum depth of back box -
64.5 Millimetre
Mounting method -
DRA (DIN-rail adapter)
Other bus systems -
None
Output power -
2500 Watt
Rated current -
10 Ampere
Rated operating voltage -
230 Volt
Width in number of modular spacings -
12
With LED indication -
ABB

Availability Back Order

£397.16
