50116854

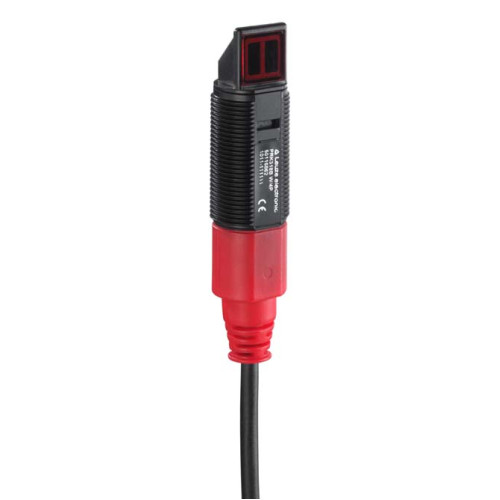

Throughbeam photoelectric sensor transmitter Special design: Deactivation input, 90° - angular optics; Operating range limit:

Manufacturer's No: LS318B.W/9D     Manufacturer: Leuze
Throughbeam photoelectric sensor transmitter Special design: Deactivation input, 90° - angular optics; Operating range limit: 0 ... 8 m; Light source: LED, Red; Supply voltage: 10 ... 30 V, DC; Conne

Availability Back Order

£68.00
  • Special version with deactivation input and 90° angular optics
  • Operating range limit: 0 to 8 m
  • Light source: Red LED
  • Supply voltage: 10 to 30 V DC
  • Connection: 4-wire cable, 2,000 mm
  • Design: Cylindrical housing with M18 thread size
  • Dimensions: 18 mm x 60.4 mm
  • Housing material: Plastic
  • Ambient temperature during operation: -40 to 60 °C
  • Degree of protection: IP 67

Accessories

Others



Product

Manufacturer Material ID -
LS318B.W/9D
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

-
Leuze
Max. output current -
- Milliampere
Opening angle -
- Degrees
Switching frequency -
- Hertz
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Type of interface for safety communication -
UN
Type of switching output -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Setting procedure -
UN
Light dot -
- Square millimetre
Time of reaction -
- Millisecond
Type of safety acc. IEC 61496-1 -
UN
Degree of protection (IP) -
UN
AWG-number -
-
Width sensor -
- Millimetre
Height of sensor -
- Millimetre
Sensing mode -
UN
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
60.4 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Max. switching distance -
8000 Millimetre
Min. reflector distance -
0 Millimetre
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
5500 Millimetre
Scope of delivery of the one-way system -
Transmitter
Switching voltage of OSSD at state "high" -
0 Volt
Transmission range of the safety field -
0 Metre
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Other
Voltage type -
DC
Wavelength of the sensor -
620 Nanometre
Thumbnail of product picture -
Leuze

Availability Back Order

£68.00
