50117694

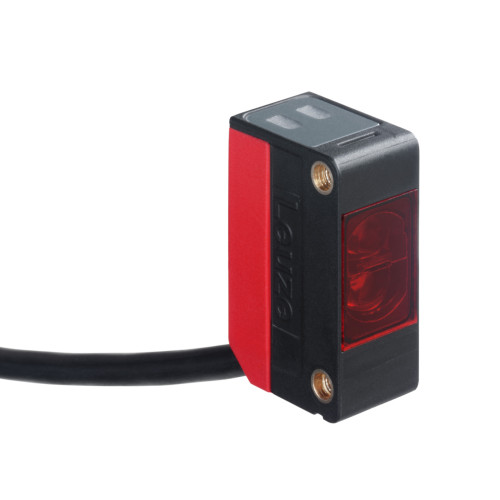

Throughbeam photoelectric sensor transmitter Operating range limit: 0 ... 15 m; Light source: LED, Red; Supply voltage: 10 ... 30

Manufacturer's No: LS5/9D     Manufacturer: Leuze
Throughbeam photoelectric sensor transmitter Operating range limit: 0 ... 15 m; Light source: LED, Red; Supply voltage: 10 ... 30 V, DC; Connection: Cable, 2,000 mm, 4 -wire; Housing design: Cubic; D

Availability Back Order

£64.00
  • Operating Range Limit: 0 to 15 m
  • Light Source: Red LED
  • Supply Voltage: 10 to 30 V DC
  • Connection: 2,000 mm Cable, 4-wire
  • Housing Design: Cubic
  • Dimensions: 14 mm x 32.5 mm x 20.2 mm
  • Housing Material: Plastic
  • Ambient Temperature (Operation): -40 to 60 °C
  • Degree of Protection: IP 67
  • Special Feature: Deactivation Input


Product

Manufacturer Material ID -
LS5/9D
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

-
Leuze
Max. output current -
- Milliampere
Opening angle -
- Degrees
Switching frequency -
- Hertz
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Type of interface for safety communication -
UN
Type of switching output -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Setting procedure -
UN
Light dot -
- Square millimetre
Time of reaction -
- Millisecond
Type of safety acc. IEC 61496-1 -
UN
Degree of protection (IP) -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Sensing mode -
UN
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Voltage type -
DC
Housing material -
Plastic
Ambient temperature -
-40 Degrees celsius
Number of protected semiconductor outputs -
0
Number of protected contact energized outputs -
0
Type of electric connection -
Cable
Type of switch function -
Other
Rated control supply voltage at DC -
10 Volt
Operation agent-safety class -
Safety class 3
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Cuboid
Laser protection class -
None
Type of light -
Polarity free red light
Scope of delivery of the one-way system -
Transmitter
Max. output current at protected output -
0 Milliampere
Min. reflector distance -
0 Millimetre
Transmission range of the safety field -
0 Metre
Switching voltage of OSSD at state "high" -
0 Volt
Wavelength of the sensor -
620 Nanometre
Material of optical surface -
Plastic
Material of cable sheath -
Polyurethane (PUR)
Degree of protection (IP rating) -
IP67
Width sensor -
14 Millimetre
Height of sensor -
32.5 Millimetre
Length of sensor -
20.2 Millimetre
Max. switching distance -
15000 Millimetre
Rated switching distance -
10000 Millimetre
Leuze

Availability Back Order

£64.00
