50150584

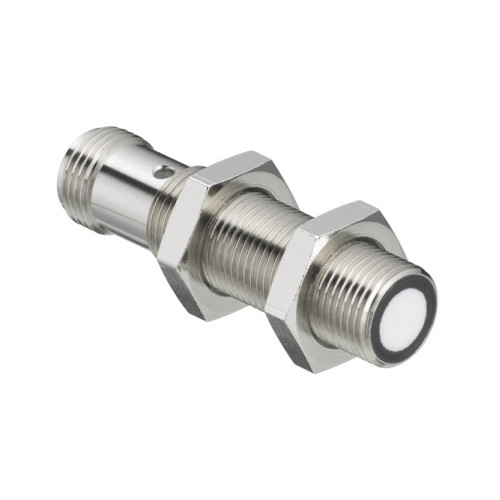

Special version: Multiplex operation, Synchronous operation, Teach input; Operating range: 0.015 ... 0.5 m; Direction of beam: Fro

Manufacturer's No: HTU412B-500/L6T-M12     Manufacturer: Leuze
Special version: Multiplex operation, Synchronous operation, Teach input; Operating range: 0.015 ... 0.5 m; Direction of beam: Front; Opening angle: 3 ... 11 °; Supply voltage: 12 ... 30 V, DC; Digit

Availability On Request

POA
  • Special version: Multiplex operation, Synchronous operation, Teach input
  • Operating range: 0.015
  • 0.5 m
  • Direction of beam: Front
  • Opening angle: 3
  • 11 °
  • Supply voltage: 12
  • 30 V DC
  • Digital switching outputs: 2 pieces
  • Switching output 1: Transistor, Push-pull, IO-Link, PNP/NPN light/dark switching

Read more

  • Switching output 2: Transistor, Push-pull, PNP/NPN light/dark switching
  • Switching frequency: 12 Hz
  • Interface: IO-Link
  • Connection: M12 5-pin connector
  • Design: Cylindrical M12
  • Dimensions: 12 mm x 50 mm
  • Housing material: Metal

Accessories



Product

Manufacturer Material ID -
HTU412B-500/L6T-M12
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
UNSPSC -
32121702

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Other
Length of sensor -
50 Millimetre
Material of cable sheath -
Other
Maximum output current -
100 Milliampere
No load current -
35 Milliampere
Relative linearity deflection -
4 Percentage
Standard for interfaces -
Other
Supply voltage -
12 Volt
Switching frequency -
12 Hertz
Type of electric connection -
Connector M12
Type of switching output -
PNP/NPN
Voltage type -
DC
