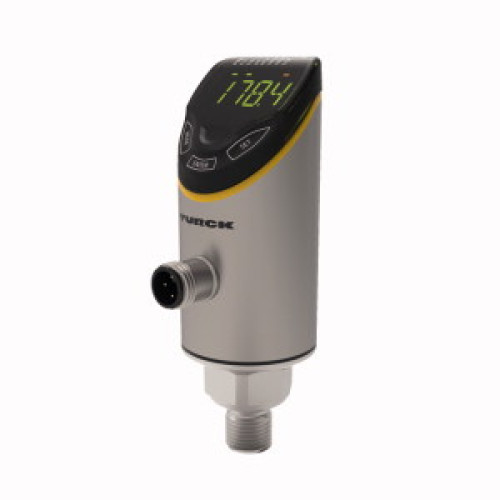

Pressure Sensor, Relative Pressure: -1…10  Bar

Manufacturer's No: PS510-10V-03-2UPN8-H1141     Manufacturer: Turck Banner
Pressure Sensor, Relative Pressure: -1…10  Bar

Availability On Request

POA
  • Pressure Sensor: Relative Pressure -1 to 10 Bar
  • Operating Voltage: 18 to 33 VDC
  • 4-digit, 2-colored, 12-segment display
  • Display rotatable by 180°
  • Housing rotatable after plugging the process connection
  • Metal measuring cell
  • NO/NC contact, PNP/NPN output
  • IO-Link compatible
  • Process Connection: 1/4" NPT male thread
  • Connector Device: M12 x 1


Product

Manufacturer Material ID -
PS510-10V-03-2UPN8-H1141
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
90262020000
Country of Origin -
PL
UNSPSC -
32151701
Turck Banner

Availability On Request

POA
