100001738

Pressure Sensor, Relative Pressure: 0…400  Bar

Manufacturer's No: PS510-400-03-2UPN8-H1141     Manufacturer: Turck Banner

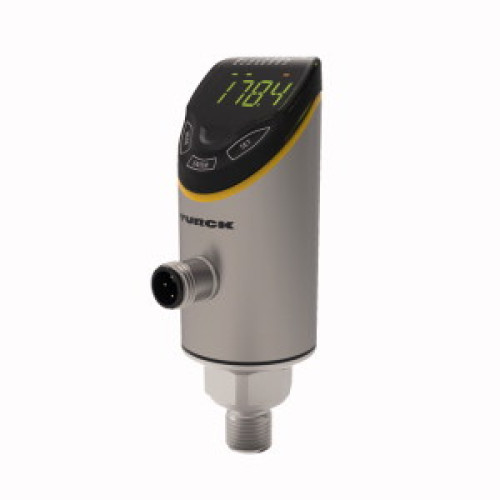

Pressure Sensor, Relative Pressure: 0…400  Bar

Availability On Request

POA
  • Pressure Sensor: Relative Pressure 0 to 400 Bar
  • Operating Voltage: 18 to 33 VDC
  • Display: 4-digit, 2-colored, 12-segment display, rotatable by 180°
  • Housing: Rotatable after plugging the process connection
  • Measuring Cell: Metal
  • Contact: NO/NC contact
  • Output: PNP/NPN
  • Communication: IO-Link
  • Process Connection: 1/4" NPT male thread
  • Connector: M12 × 1


Product

Manufacturer Material ID -
PS510-400-03-2UPN8-H1141
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
90262020000
Country of Origin -
PL
UNSPSC -
32151701
Turck Banner

Availability On Request

POA
