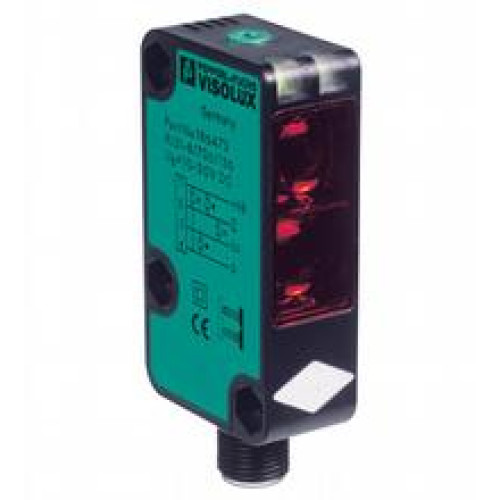

RL31-8-1200-RT/73C/136

Diffuse mode sensor - Detection range: 0 ... 1200 mm adjustable, Light source: LED, Light type: modulated visible red light , 630

Manufacturer's No: 186473     Manufacturer: Pepperl+Fuchs
Diffuse mode sensor - Detection range: 0 ... 1200 mm adjustable, Light source: LED, Light type: modulated visible red light , 630 nm, Signal output: 2 push-pull (4 in 1) outputs, short-circuit prot..

Availability Available to order

£76.71
  • Detection Range: 0 to 1200 mm adjustable
  • Light Source: LED
  • Light Type: Modulated visible red light (630 nm)
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit and reverse polarity protected
  • Switching Type: Light-on
  • Connection: 4-pin, M12 x 1 connector
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -30 to 55 °C (-22 to 131 °F)


Product

Manufacturer Material ID -
186473
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
VN
Minimum Order Quantity -
1
UNSPSC -
41111926
