RL31-8-2500-IR/73c/136

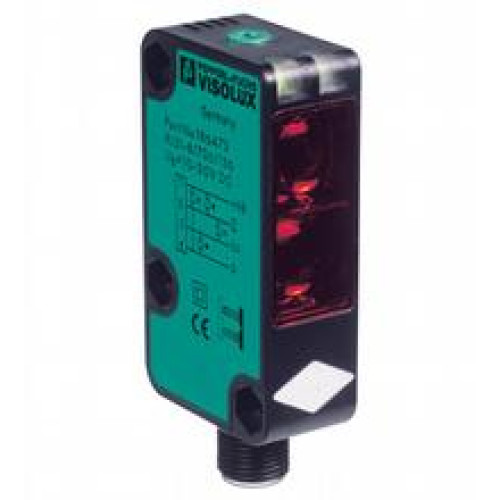

Diffuse mode sensor - Detection range: 0 ... 2500 mm adjustable, Light source: IRED, Light type: modulated infrared light , 850 nm

Manufacturer's No: 207544     Manufacturer: Pepperl+Fuchs
Diffuse mode sensor - Detection range: 0 ... 2500 mm adjustable, Light source: IRED, Light type: modulated infrared light , 850 nm, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protec..

Availability Back Order

£72.15
  • Detection Range: 0 to 2500 mm adjustable
  • Light Source: IRED (modulated infrared light, 850 nm)
  • Signal Output: 2 push-pull outputs (4 in 1), short-circuit and reverse polarity protected
  • Switching Type: Light-on
  • Connection: 4-pin, M12 x 1 connector
  • Operating Voltage: 10 to 30 V DC, Class 2
  • Ambient Temperature: -30 to 55 °C (-22 to 131 °F)


Product

Manufacturer Material ID -
207544
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
VN
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pepperl+Fuchs
Pepperl+Fuchs

Availability Back Order

£72.15
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
