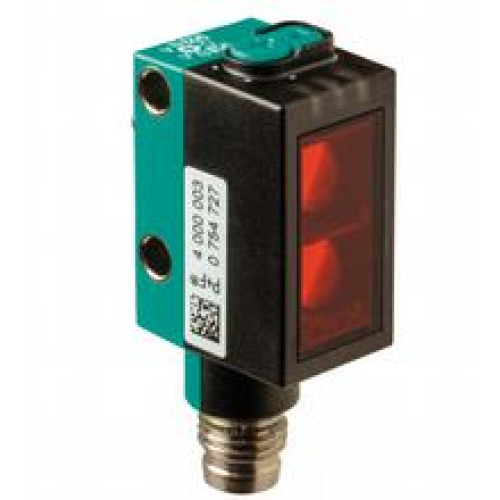

OQT150-R101-2EP-IO-V31

Triangulation sensor - Detection range: 5 ... 150 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2

Manufacturer's No: 267075-100162     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 5 ... 150 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polar..

Availability Back Order

£124.36
  • Detection Range: 5 to 150 mm
  • Light Source: LED, modulated visible red light
  • Signal Output: 2 push-pull outputs (4 in 1), short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via C/Q on pin 4
  • Switching Type: Default setting - C/Q Pin4: NPN normally open, PNP normally closed; IO-Link Q2 Pin2: NPN normally open, PNP normally closed
  • Connection: M8 x 1 connector, 4-pin
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F)

Accessories



Product

Manufacturer Material ID -
267075-100162
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

-
Pepperl+Fuchs
Pepperl+Fuchs

Availability Back Order

£124.36
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
